| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | ZFW400L 450mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable,USD1200-USD2000 |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 5~10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Voltage: | 380V | Ambient Temperature: | -20℃~+40℃ |
|---|---|---|---|
| Elevator Height: | ≤120m | Insulation Class: | F |
| Material: | Aluminum Alloy | Name: | Elevator Traction Machine |
| Power: | AC/DC | Protection Class: | IP54 |
| Rated Frequency: | 50/60Hz | Rated Load: | 630-1000kg |
| Rated Speed: | 1.0-2.5m/s | Rated Voltage: | 220V/380V |
| Highlight: | Lift Traction Machine,Elevator Traction Machine |
||
REMARK

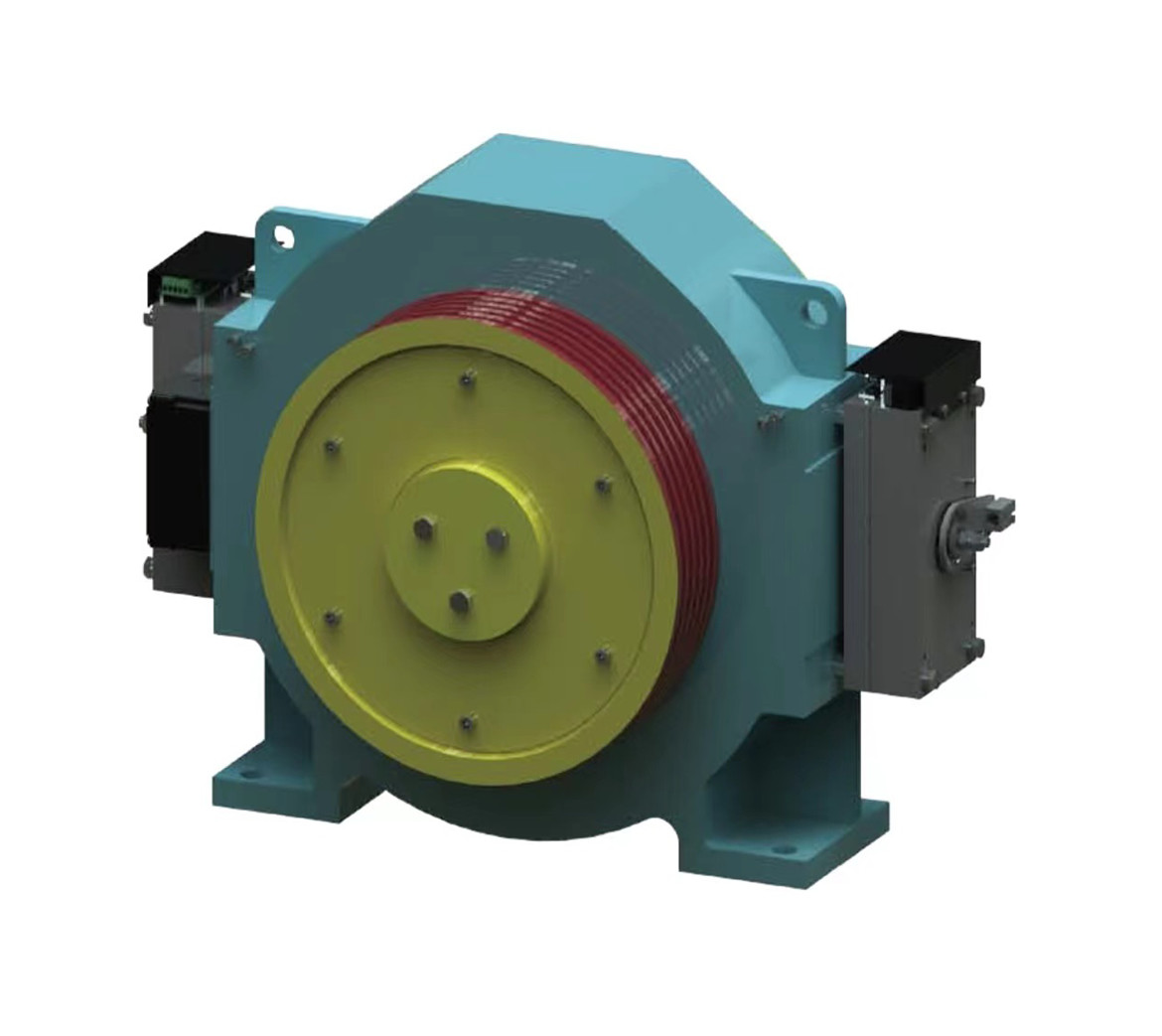

The elevator travel main engine, also known as the lift traction machine or elevator motor, is responsible for moving the elevator car vertically along the elevator shaft. It is an essential component of the elevator system.
The traction machine uses a motor to drive a sheave or pulley, which is connected to steel ropes or belts. These ropes or belts are attached to the elevator car and counterweight, allowing them to move in opposite directions.
When the motor rotates the sheave, it creates tension in the ropes or belts, causing the elevator car to move up or down. The motor's power and design depend on the specific requirements of the elevator, such as the weight capacity, speed, and building height.
Traction machines can be categorized into different types, including geared and gearless machines. Geared machines use gears to increase torque and reduce the motor speed, while gearless machines operate directly without gears, providing a smoother and more efficient ride.
The selection of the traction machine depends on factors such as the elevator's load capacity, speed, energy efficiency, and installation space. It is important to choose a reliable and high-quality traction machine for safe and efficient elevator operation.
ZFW400L MODEL RECOMMENDED FORM
| Specification | Ratio |
Load (Kg) |
Speed (m/s) |
Motor | Sheave | ||||||||||||||
|
Voltage (V) |
Power (KW) |
Current (A) |
Frequency (Hz) |
Pole (P) |
Speed (r/min) |
Torque (N*m) |
Energy (%) |
S Dia. (mm) | R No. | R Dia. (mm) | R Dist (mm) | Groove | β° | γ° |
RLH (m) |
||||
| ZFW400L-630-050B | 2:1 | 630 | 0.5 | 380 | 2.2 | 6 | 11.2 | 32 | 42 | 490 | 73.3 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-630-063B | 0.63 | 2.7 | 6 | 14.1 | 53 | 73.5 | 30 | ||||||||||||
| ZFW400L-630-100B | 1 | 4.3 | 10 | 22.7 | 85 | 75.5 | 45 | ||||||||||||
| ZFW400L-630-150B | 1.5 | 6.5 | 16 | 33.9 | 127 | 78.5 | 65 | ||||||||||||
| ZFW400L-630-160B | 1.6 | 7 | 16 | 36.3 | 136 | 78.8 | 70 | ||||||||||||
| ZFW400L-630-175B | 1.75 | 7.5 | 16 | 39.7 | 149 | 79.1 | 75 | ||||||||||||
| ZFW400L-630-200B | 2 | 8.6 | 18 | 45.3 | 170 | 80.3 | 80 | ||||||||||||
| ZFW400L-630-250B | 2.5 | 10.9 | 22.4 | 56.5 | 212 | 81.5 | 95 | ||||||||||||
| ZFW400L-800-050B | 2:1 | 800 | 0.5 | 380 | 2.7 | 8 | 11.2 | 32 | 42 | 600 | 73.5 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-800-063B | 0.63 | 3.4 | 8 | 14.1 | 53 | 74.3 | 30 | ||||||||||||
| ZFW400L-800-100B | 1 | 5.4 | 12 | 22.7 | 85 | 75.8 | 45 | ||||||||||||
| ZFW400L-800-150B | 1.5 | 8 | 20 | 33.9 | 127 | 79.3 | 65 | ||||||||||||
| ZFW400L-800-160B | 1.6 | 8.6 | 20 | 36.3 | 136 | 79.6 | 70 | ||||||||||||
| ZFW400L-800-175B | 1.75 | 9.4 | 20 | 39.7 | 149 | 80.1 | 75 | ||||||||||||
| ZFW400L-800-200B | 2 | 10.8 | 23 | 45.3 | 170 | 81.5 | 80 | ||||||||||||
| ZFW400L-800-250B | 2.5 | 13.5 | 28 | 56.5 | 212 | 83 | 95 | ||||||||||||
| ZFW400L-825-050B | 2:1 | 825 | 0.5 | 380 | 2.7 | 8 | 11.2 | 32 | 42 | 600 | 73.5 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-825-063B | 0.63 | 3.4 | 8 | 14.1 | 53 | 74.3 | 30 | ||||||||||||
| ZFW400L-825-100B | 1 | 5.4 | 12 | 22.7 | 85 | 75.8 | 45 | ||||||||||||
| ZFW400L-825-150B | 1.5 | 8 | 20 | 33.9 | 127 | 79.3 | 65 | ||||||||||||
| ZFW400L-825-160B | 1.6 | 8.6 | 20 | 36.3 | 136 | 79.6 | 70 | ||||||||||||
| ZFW400L-825-175B | 1.75 | 9.4 | 20 | 39.7 | 149 | 80.1 | 75 | ||||||||||||
| ZFW400L-825-200B | 2 | 10.8 | 23 | 45.3 | 170 | 81.5 | 80 | ||||||||||||
| ZFW400L-825-250B | 2.5 | 13.5 | 28 | 56.5 | 212 | 83 | 95 | ||||||||||||
| ZFW400L-800-100B | 4:1 | 1600 | 0.5 | 380 | 5.4 | 12 | 22.7 | 32 | 85 | 600 | 75.8 | 450 | 4 | 10 | 15 | V | 105 | 45 | 25 |
| ZFW400L-800-200B | 1 | 10.8 | 23 | 45.3 | 170 | 80.8 | 45 | ||||||||||||
| ZFW400L-800-100B | 4:1 | 1600 | 0.5 | 380 | 5.4 | 12 | 22.7 | 32 | 85 | 600 | 75.8 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-800-200B | 1 | 10.8 | 23 | 45.3 | 170 | 80.8 | 45 | ||||||||||||
Optional Table
| Type | Load(Kg) | Speed(m/s) | Sheave(mm) | Voltage(V) |
| Outer rotor traction machine | ||||
| ZFW320 | 320-630 | 0.5-1.75 | 320 | 380 |
| ZFW400L | 630-1050 | 0.5-2.5 | 400 | 380 |
| ZFW400L | 630-825 | 0.5-2.5 | 450 | 380 |
| ZFW400L | 1000-1150 | 0.5-2.5 | 400/450 | 380 |
| ZFW400L | 1250-1600 | 0.5-2.5 | 400/480 | 380 |
| ZFW480 | 1250-1600 | 1.0-2.5 | 450/550 | 380 |
| ZFW480 | 2000-2500 | 0.5-3.0 | 450/480 | 380 |
| Inner rotor traction machine | ||||
| ZFN320 | 630-1150 | 0.5-1.75 | 320 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 450 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 480 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 520 | 380 |
| Household elevator traction machine | ||||
| ZFN200 | 320-450 | 0.4-1.0 | 200/240 | 220/380 |
| ZFN200A | 320-450 | 0.4-1.0 | 200/240 | 220/380 |
| ZFG100 | 320-630 | 0.4-1.0 | 100 | 220/380 |
| ZFG87 | 320-450 | 0.4-1.0 | 87 | 220/380 |
| ZFG87 | 320-450 | 0.3-0.5 | 65 | 220/380 |
