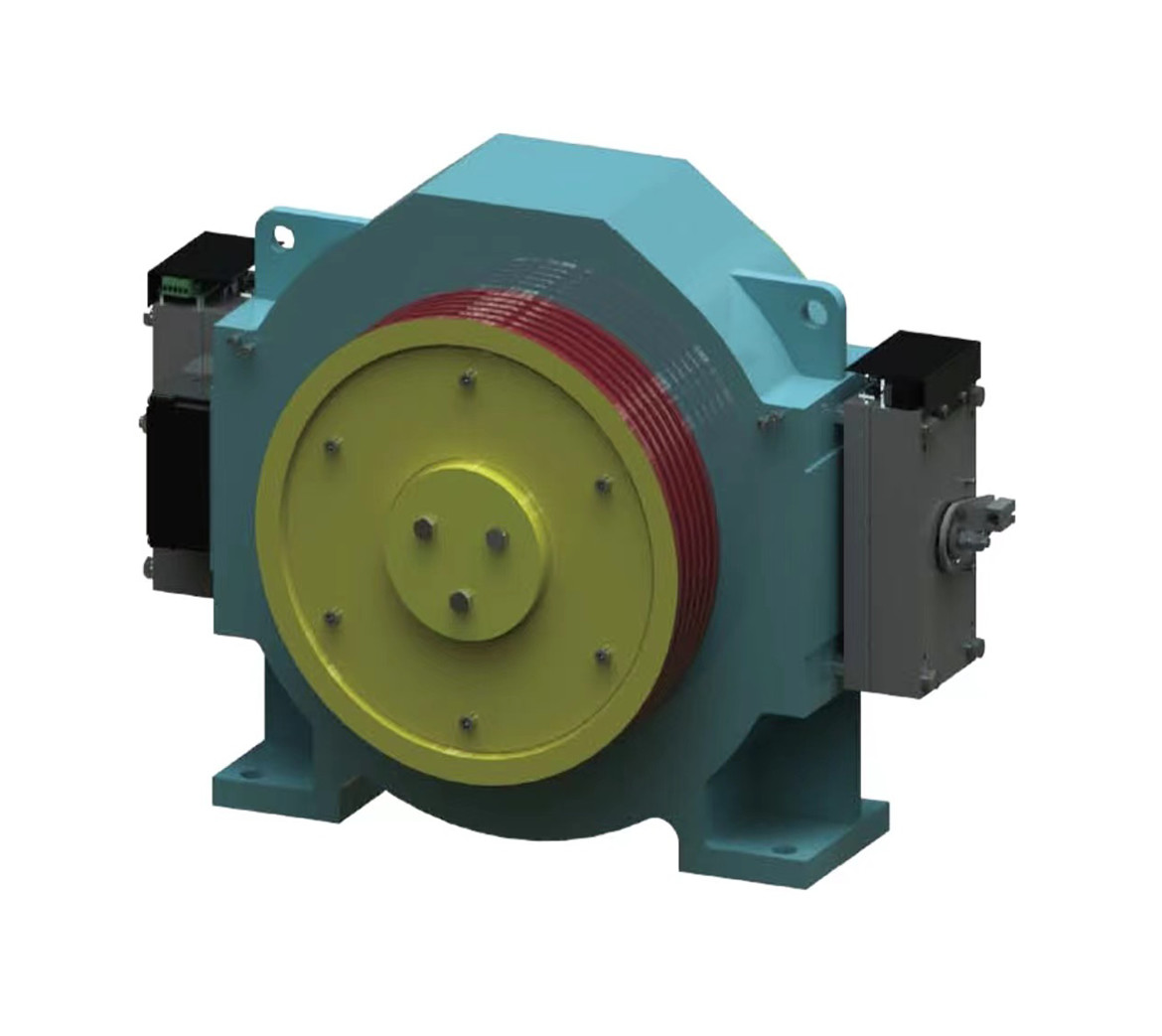

| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | ZFW400L 450mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable,USD1200-USD2000 |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 5~10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Voltage: | 380 | Roping: | 2:1 / 4:1 |
|---|---|---|---|
| Wrap: | Single | Elv.Load: | 630-825kg |
| Elv.Speed: | 0.5-2.5m/s | Sheave Diam: | 450mm |
| Duty: | S5-40% | Max. Static Load: | 4000kg |
| Weight: | 330kg | Brake: | DC110V 2X1.3 |
| IP Code: | IP41 | Ins. Class: | F |
| Highlight: | Electric Elevator Traction Machine,450mm Elevator Traction Motor,IP41 Elevator Traction Motor |
||
REMARK
Elevator traction machine is an important part of elevator system, which is used to provide power and drive the operation of elevator. It is usually composed of motor, reducer, traction wheel, wire rope and other components.
The following are the main components and functions of elevator traction machine:
1,Electric motor: elevator traction machine uses electric motor as power source to convert electric energy into mechanical energy and provide enough torque and rotational force to drive traction wheel.
2,Reducer: the reducer is located between the motor and the traction wheel, which is used to reduce the output speed of the motor and provide suitable torque and force to the traction wheel. The reducer can be realized by gear, chain or belt transmission.
3,Traction wheel: the traction wheel is a round wheel made of high-strength materials and fixed on the elevator frame. The wire rope is twined on the traction wheel, which provides the power of up and down movement through the rotation of the traction wheel.

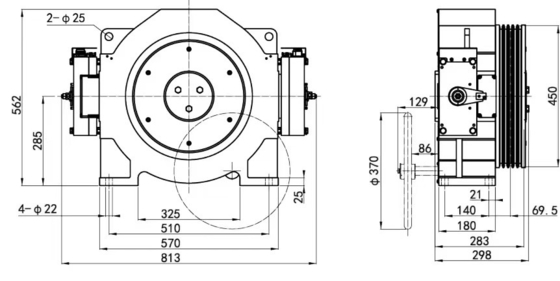

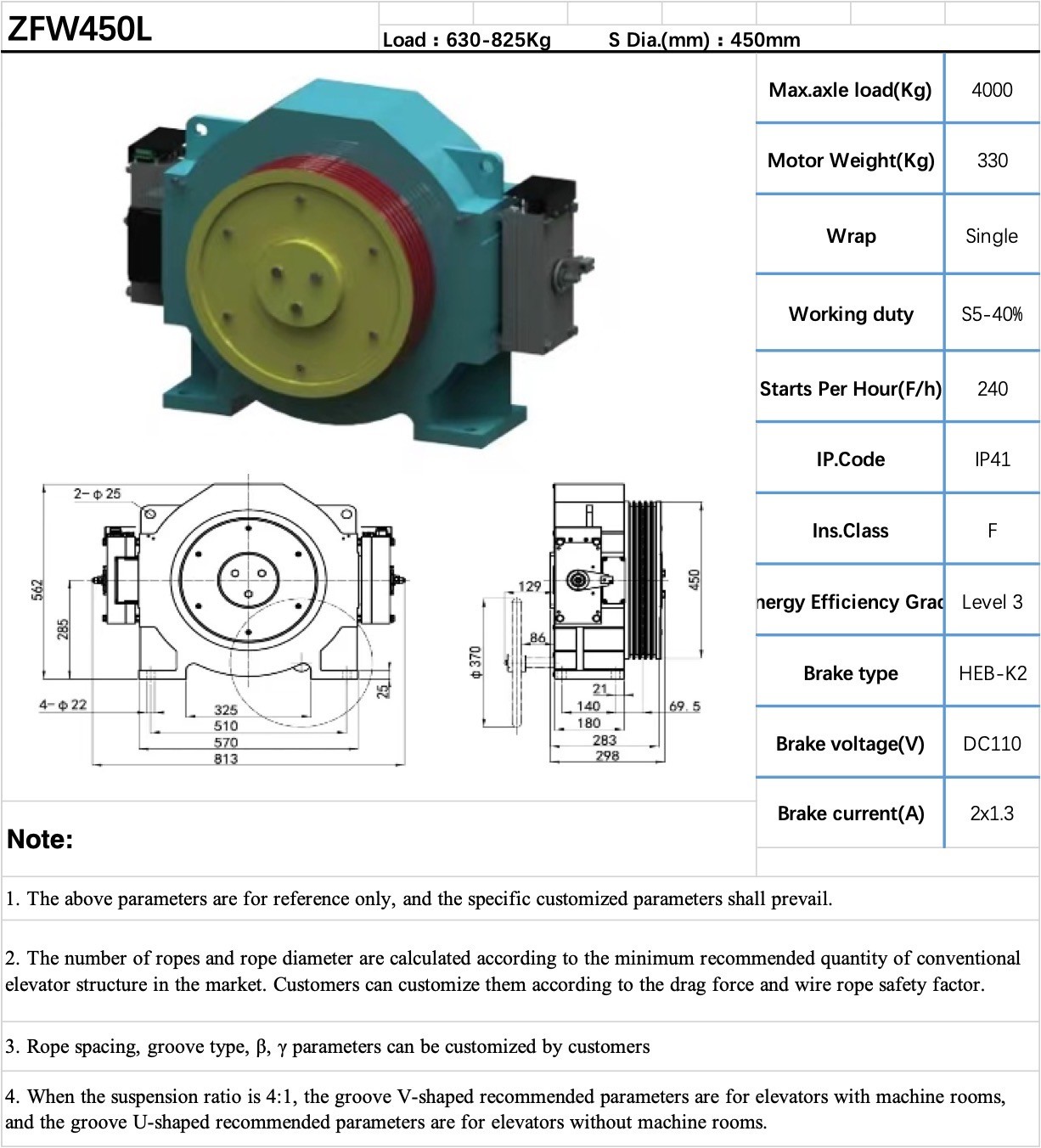

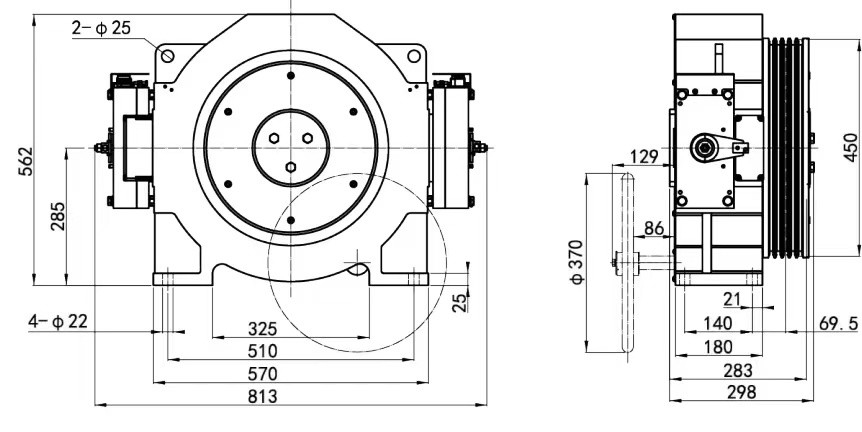

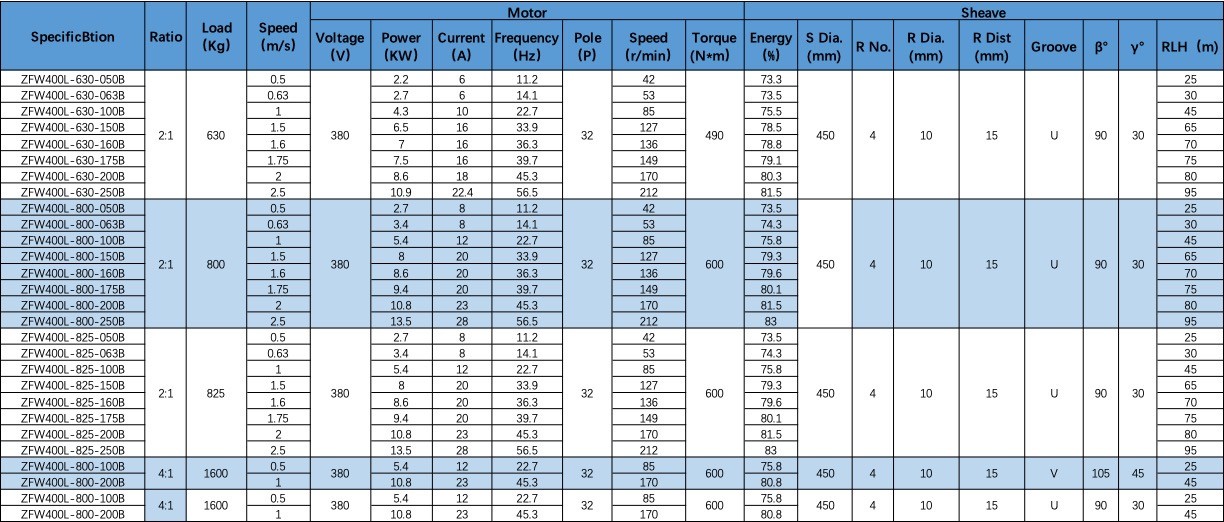

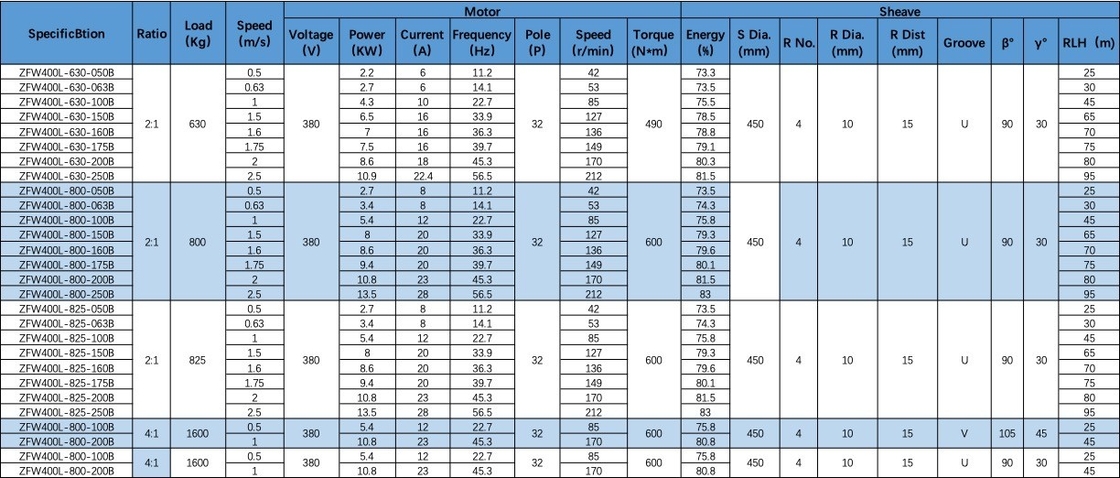

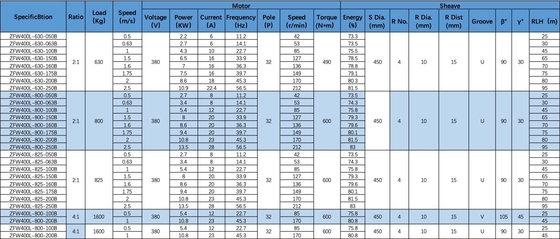

ZFW400L MODEL RECOMMENDED FORM
| Specification | Ratio | Load(Kg) | Speed(m/s) | Motor | Sheave | ||||||||||||||
| Voltage(V) | Power(KW) | Current(A) | Frequency(Hz) | Pole(P) | Speed(r/min) | Torque(N*m) | Energy(%) | S Dia. (mm) | R No. | R Dia. (mm) | R Dist (mm) | Groove | β° | γ° | RLH(m) | ||||
| ZFW400L-630-050B | 2:1 | 630 | 0.5 | 380 | 2.2 | 6 | 11.2 | 32 | 42 | 490 | 73.3 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-630-063B | 0.63 | 2.7 | 6 | 14.1 | 53 | 73.5 | 30 | ||||||||||||
| ZFW400L-630-100B | 1 | 4.3 | 10 | 22.7 | 85 | 75.5 | 45 | ||||||||||||
| ZFW400L-630-150B | 1.5 | 6.5 | 16 | 33.9 | 127 | 78.5 | 65 | ||||||||||||
| ZFW400L-630-160B | 1.6 | 7 | 16 | 36.3 | 136 | 78.8 | 70 | ||||||||||||
| ZFW400L-630-175B | 1.75 | 7.5 | 16 | 39.7 | 149 | 79.1 | 75 | ||||||||||||
| ZFW400L-630-200B | 2 | 8.6 | 18 | 45.3 | 170 | 80.3 | 80 | ||||||||||||
| ZFW400L-630-250B | 2.5 | 10.9 | 22.4 | 56.5 | 212 | 81.5 | 95 | ||||||||||||
| ZFW400L-800-050B | 2:1 | 800 | 0.5 | 380 | 2.7 | 8 | 11.2 | 32 | 42 | 600 | 73.5 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-800-063B | 0.63 | 3.4 | 8 | 14.1 | 53 | 74.3 | 30 | ||||||||||||
| ZFW400L-800-100B | 1 | 5.4 | 12 | 22.7 | 85 | 75.8 | 45 | ||||||||||||
| ZFW400L-800-150B | 1.5 | 8 | 20 | 33.9 | 127 | 79.3 | 65 | ||||||||||||
| ZFW400L-800-160B | 1.6 | 8.6 | 20 | 36.3 | 136 | 79.6 | 70 | ||||||||||||
| ZFW400L-800-175B | 1.75 | 9.4 | 20 | 39.7 | 149 | 80.1 | 75 | ||||||||||||
| ZFW400L-800-200B | 2 | 10.8 | 23 | 45.3 | 170 | 81.5 | 80 | ||||||||||||
| ZFW400L-800-250B | 2.5 | 13.5 | 28 | 56.5 | 212 | 83 | 95 | ||||||||||||
| ZFW400L-825-050B | 2:1 | 825 | 0.5 | 380 | 2.7 | 8 | 11.2 | 32 | 42 | 600 | 73.5 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-825-063B | 0.63 | 3.4 | 8 | 14.1 | 53 | 74.3 | 30 | ||||||||||||
| ZFW400L-825-100B | 1 | 5.4 | 12 | 22.7 | 85 | 75.8 | 45 | ||||||||||||
| ZFW400L-825-150B | 1.5 | 8 | 20 | 33.9 | 127 | 79.3 | 65 | ||||||||||||
| ZFW400L-825-160B | 1.6 | 8.6 | 20 | 36.3 | 136 | 79.6 | 70 | ||||||||||||
| ZFW400L-825-175B | 1.75 | 9.4 | 20 | 39.7 | 149 | 80.1 | 75 | ||||||||||||
| ZFW400L-825-200B | 2 | 10.8 | 23 | 45.3 | 170 | 81.5 | 80 | ||||||||||||
| ZFW400L-825-250B | 2.5 | 13.5 | 28 | 56.5 | 212 | 83 | 95 | ||||||||||||
| ZFW400L-800-100B | 4:1 | 1600 | 0.5 | 380 | 5.4 | 12 | 22.7 | 32 | 85 | 600 | 75.8 | 450 | 4 | 10 | 15 | V | 105 | 45 | 25 |
| ZFW400L-800-200B | 1 | 10.8 | 23 | 45.3 | 170 | 80.8 | 45 | ||||||||||||
| ZFW400L-800-100B | 4:1 | 1600 | 0.5 | 380 | 5.4 | 12 | 22.7 | 32 | 85 | 600 | 75.8 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-800-200B | 1 | 10.8 | 23 | 45.3 | 170 | 80.8 | 45 | ||||||||||||
Optional Table
| Type | Load(Kg) | Speed(m/s) | Sheave(mm) | Voltage(V) |
| Outer rotor traction machine | ||||
| ZFW320 | 320-630 | 0.5-1.75 | 320 | 380 |
| ZFW400L | 630-1050 | 0.5-2.5 | 400 | 380 |
| ZFW400L | 630-825 | 0.5-2.5 | 450 | 380 |
| ZFW400L | 1000-1150 | 0.5-2.5 | 400/450 | 380 |
| ZFW400L | 1250-1600 | 0.5-2.5 | 400/480 | 380 |
| ZFW480 | 1250-1600 | 1.0-2.5 | 450/550 | 380 |
| ZFW480 | 2000-2500 | 0.5-3.0 | 450/480 | 380 |
| Inner rotor traction machine | ||||
| ZFN320 | 630-1150 | 0.5-1.75 | 320 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 450 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 480 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 520 | 380 |
| Household elevator traction machine | ||||
| ZFN200 | 320-450 | 0.4-1.0 | 200/240 | 220/380 |
| ZFN200A | 320-450 | 0.4-1.0 | 200/240 | 220/380 |
| ZFG100 | 320-630 | 0.4-1.0 | 100 | 220/380 |
| ZFG87 | 320-450 | 0.4-1.0 | 87 | 220/380 |
| ZFG87 | 320-450 | 0.3-0.5 | 65 | 220/380 |
