| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | ZFN200 ZFN200A 200/240mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable,USD1200-USD2000 |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 5~10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Voltage: | 220/380(V) | Roping: | 2:1 |
|---|---|---|---|
| Wrap: | Single | Elv.Load: | 320-450(kg) |
| Elv.Speed: | 0.4(m/s) Or 0.1m/s | Sheave Diam: | 200/240mm |
| Duty: | S5-40% | Max. Static Load: | 2500kg |
| Weight: | 160kg | Brake: | DC110V 2.6 |
| IP Code: | IP41 | Ins. Class: | F |
| Highlight: | 200mm Elevator Traction Machine,Elevator Draft Gear Lift Table,Lift Traction Motor Dia 240mm |
||

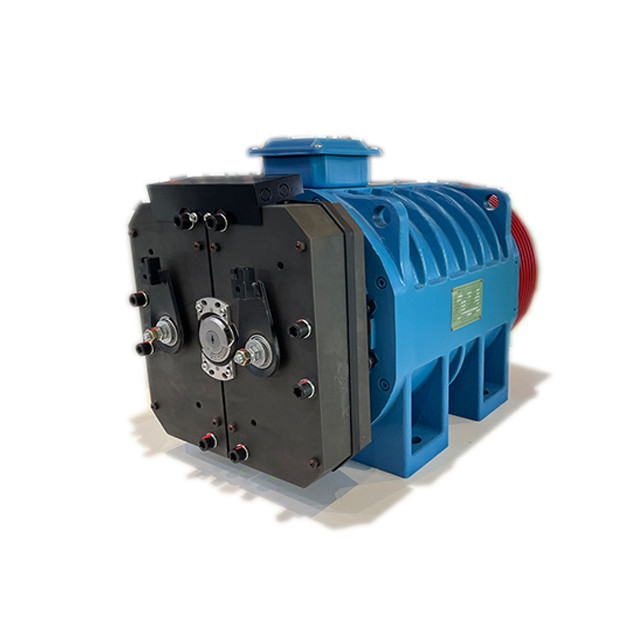

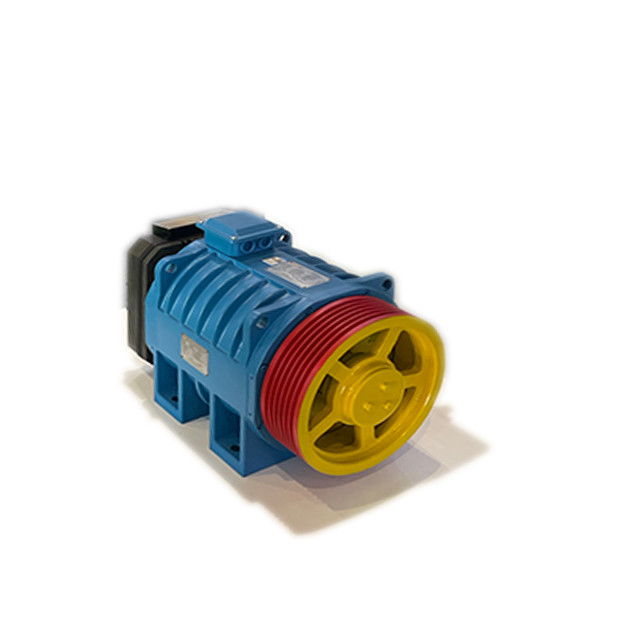

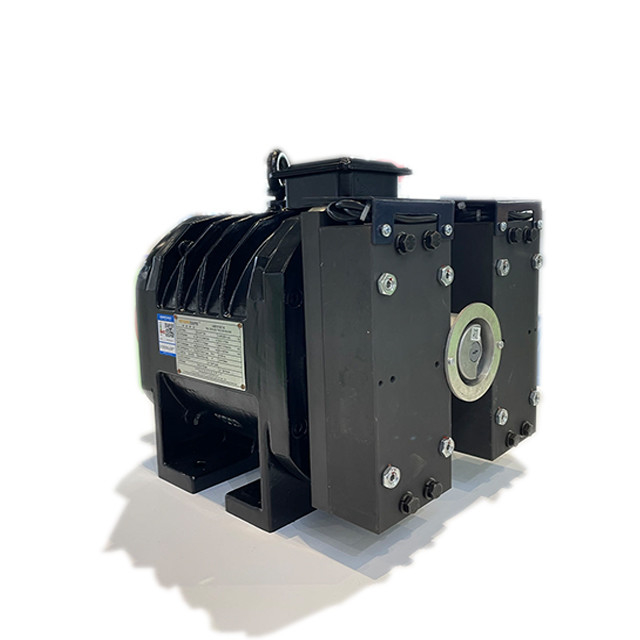

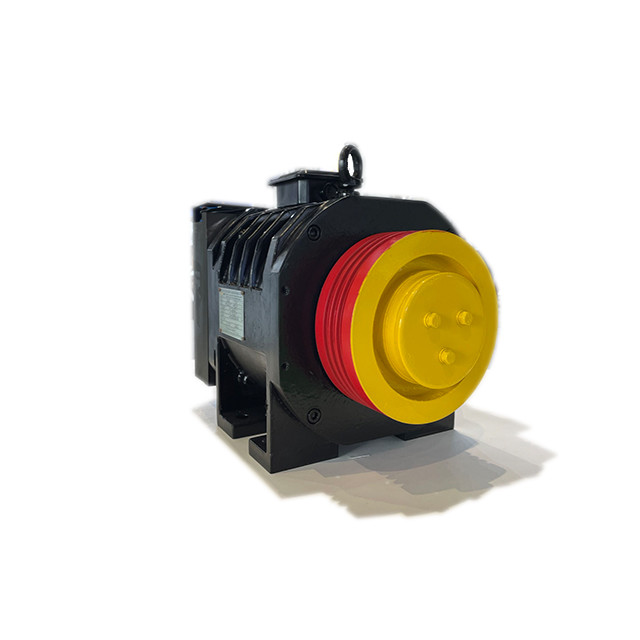

Elevator Lift Traction Motor
The elevator lift traction motor is a critical component of an elevator system. It is responsible for driving the movement of the elevator car by providing the necessary pulling force on the traction ropes or belts.
The traction motor is typically an AC (alternating current) or DC (direct current) motor, depending on the specific design and requirements of the elevator system. It is housed within the elevator machine room and connected to the drive system, such as a gearbox or pulley system, which in turn drives the movement of the elevator car.
The traction motor plays a crucial role in ensuring smooth and efficient operation of the elevator, providing the necessary power and control for vertical transportation. It is engineered to meet safety standards and designed to withstand the demands of frequent starts, stops, and varying loads.
It's important to note that elevator systems can vary in terms of motor technology, capacity, and other specifications, depending on the specific manufacturer and model. Therefore, it's advisable to consult with elevator experts or manufacturers for detailed information about the traction motor related to your specific elevator system requirements.
ZFN200 ZFN200A MODEL RECOMMENDED FOR
| Specification | Ratio | Load(Kg) | Speed(m/s) | Motor | Sheave | ||||||||||||||||
| Voltage(V) | Power(KW) | Current(A) | Frequency(Hz) | Pole(P) | Speed(r/min) | Torque(N*m) | Energy(%) | S Dia. (mm) | R No. | R Dia. (mm) | R Dist (mm) | Groove | β° | γ° | RLH(m) | Weight(Kg) | Packaging Volume | ||||
| ZFN200-320-040A1 | 2:1 | 320 | 0.4 | 220 | 0.9 | 4 | 10.1 | 16 | 76 | 110 | 67.2 | 220 | 3 | 8 | 12 | U | 85 | 25 | 20 | 106.3+10 | 660*450*608 |
| ZFN200-400-040A1 | 400 | 1.1 | 5 | 140 | 68.6 | 20 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-450-040A1 | 450 | 1.2 | 6 | 150 | 69 | 20 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-320-100A1 | 2:1 | 320 | 1 | 220 | 2.2 | 9 | 25.5 | 16 | 191 | 110 | 75.9 | 220 | 3 | 8 | 12 | U | 85 | 25 | 40 | 106.3+10 | 660*450*608 |
| ZFN200-400-100A1 | 400 | 2.8 | 11 | 140 | 76.5 | 40 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-450-100A1 | 450 | 3 | 12 | 150 | 76.7 | 40 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-320-040B1 | 2:1 | 320 | 0.4 | 220 | 0.9 | 5 | 8.5 | 16 | 64 | 130 | 67.2 | 240 | 3 | 8 | 12 | U | 85 | 25 | 20 | 106.3+10 | 660*450*608 |
| ZFN200-400-040B1 | 400 | 1.1 | 6 | 160 | 68.6 | 20 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-450-040B1 | 450 | 1.2 | 7 | 180 | 69 | 20 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-320-100B1 | 2:1 | 320 | 1 | 220 | 2.2 | 8 | 21.2 | 16 | 159 | 130 | 75.2 | 240 | 3 | 8 | 12 | U | 85 | 25 | 40 | 106.3+10 | 660*450*608 |
| ZFN200-400-100B1 | 400 | 2.7 | 10 | 160 | 75.6 | 40 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-450-100B1 | 450 | 3 | 11 | 180 | 75.9 | 40 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-320-040A2 | 2:1 | 320 | 0.4 | 380 | 0.9 | 2 | 10.1 | 16 | 76 | 110 | 67.2 | 220 | 3 | 8 | 12 | U | 85 | 25 | 20 | 106.3+10 | 660*450*608 |
| ZFN200-400-040A2 | 400 | 1.1 | 3 | 140 | 68.6 | 20 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-450-040A2 | 450 | 1.2 | 4 | 150 | 69 | 20 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-320-100A2 | 2:1 | 320 | 1 | 380 | 2.2 | 12 | 25.5 | 16 | 191 | 110 | 75.9 | 220 | 3 | 8 | 12 | U | 85 | 25 | 40 | 106.3+10 | 660*450*608 |
| ZFN200-400-100A2 | 400 | 2.8 | 8 | 140 | 76.5 | 40 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-450-100A2 | 450 | 3 | 9 | 150 | 76.7 | 40 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-320-040B2 | 2:1 | 320 | 0.4 | 380 | 0.9 | 3 | 8.5 | 16 | 64 | 130 | 67.2 | 240 | 3 | 8 | 12 | U | 85 | 25 | 20 | 106.3+10 | 660*450*608 |
| ZFN200-400-040B2 | 400 | 1.1 | 4 | 160 | 68.6 | 20 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-450-040B2 | 450 | 1.2 | 5 | 180 | 69 | 20 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-320-100B2 | 2:1 | 320 | 1 | 380 | 2.2 | 5 | 21.2 | 16 | 159 | 130 | 75.2 | 240 | 3 | 8 | 12 | U | 85 | 25 | 40 | 106.3+10 | 660*450*608 |
| ZFN200-400-100B2 | 400 | 2.7 | 6.5 | 160 | 75.6 | 40 | 106.3+10 | 660*450*608 | |||||||||||||
| ZFN200-450-100B2 | 450 | 3 | 7 | 180 | 75.9 | 40 | 106.3+10 | 660*450*608 | |||||||||||||
Optional Table
| Type | Load(Kg) | Speed(m/s) | Sheave(mm) | Voltage(V) |
| Outer rotor traction machine | ||||
| ZFW320 | 320-630 | 0.5-1.75 | 320 | 380 |
| ZFW400L | 630-1050 | 0.5-2.5 | 400 | 380 |
| ZFW400L | 630-825 | 0.5-2.5 | 450 | 380 |
| ZFW400L | 1000-1150 | 0.5-2.5 | 400/450 | 380 |
| ZFW400L | 1250-1600 | 0.5-2.5 | 400/480 | 380 |
| ZFW480 | 1250-1600 | 1.0-2.5 | 450/550 | 380 |
| ZFW480 | 2000-2500 | 0.5-3.0 | 450/480 | 380 |
| Inner rotor traction machine | ||||
| ZFN320 | 630-1150 | 0.5-1.75 | 320 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 450 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 480 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 520 | 380 |
| Household elevator traction machine | ||||
| ZFN200 | 320-450 | 0.4-1.0 | 200/240 | 220/380 |
| ZFN200A | 320-450 | 0.4-1.0 | 200/240 | 220/380 |
| ZFG100 | 320-630 | 0.4-1.0 | 100 | 220/380 |
| ZFG87 | 320-450 | 0.4-1.0 | 87 | 220/380 |
| ZFG87 | 320-450 | 0.3-0.5 | 65 | 220/380 |
