| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | CHW 87 |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 5~10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Voltage: | 220V/380V | Roping: | 2:1 |
|---|---|---|---|
| Wrap: | Single | Elv.Load: | 320-450kg |
| Elv.Speed: | 0.4-1.0m/s | Sheave Diam: | 87mm |
| Duty: | S5-25%ED | Starts Per Hour: | 180st/h |
| Max. Static Load: | 2000kg | Weight: | 80kg |
| Brake: | DC110V1.8A | IP Code: | IP41 |
| Ins. Class: | F | ||
| Highlight: | Low Noise gearless elevator motor,VVVF gearless elevator motor,elevator gearless machine 450kg |
||

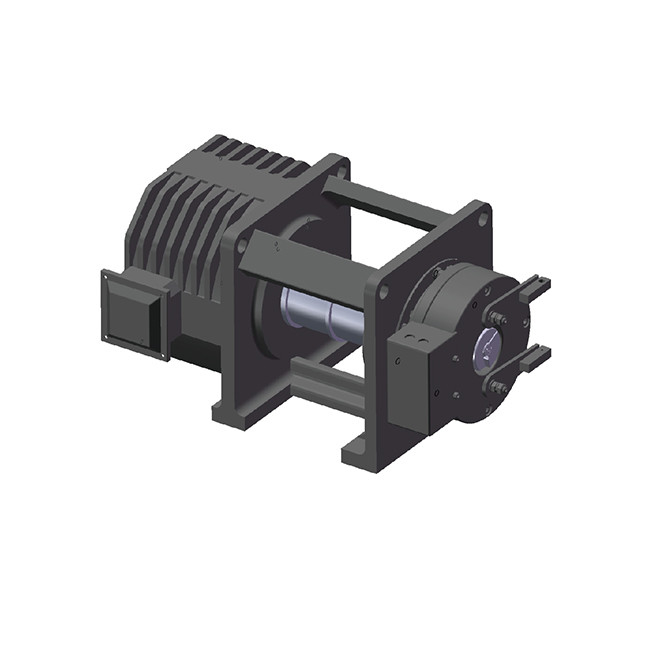

Low Noise vvvf Gearless Traction Machine elevator lift traction machine with great price
REMARK
The machine can also be used for machineroomless
The above is recommended value of cut angleits optional according to practical condition
MODEL RECOMMENDED FORM
| Elv. Load(kg) | Elv. Speed(m/s) | |||||||||
| 0.4 | 0.05 | 0.63 | 1.0 | 1.5 | 1.6 | 1.75 | 2.0 | 2.5 | 3.0 | |
| 320-450 | CHW200 CHW200A CHW100 CHW87 | |||||||||
| 630 | CHW320 CHW400 | |||||||||
| 800- 1150 | CHW320 CHW400 | |||||||||
| 1350- 1600 | CHW400L | |||||||||
| 2000- 3000 | CHW450 | |||||||||
SPEC.SHEET
| Type | Elv Load | ElvSpeed | Sheave Dia | Sheave Groov | Voltage | Current | Power | Speed | Freq | Torque | Poles |
| kg | m/s | mm | V | A | KW | r/mim | HZ | N.m | |||
| CHW87-320-040 | 320 | 0.4 | 87 | 2x60 | 220/380 | 4 | 1.0 | 176 | 23.5 | 55 | 16 |
| CHW87-320-050 | 320 | 0.5 | 87 | 2x60 | 220 | 7 | 1.3 | 220 | 29.3 | 55 | 16 |
| 380 | 4 | ||||||||||
| CHW87-320-063 | 320 | 0.63 | 87 | 2x60 | 220 | 7 | 1.6 | 277 | 36.9 | 55 | 16 |
| 380 | 4 | ||||||||||
| CHW87-320-100 | 320 | 1.0 | 87 | 2x60 | 220 | 10 | 2.5 | 439 | 58.5 | 55 | 16 |
| 380 | 7 | ||||||||||
| CHW87-400-040 | 400 | 0.4 | 87 | 2x60 | 220/380 | 5 | 1.2 | 176 | 23.5 | 65 | 16 |
| CHW87-400-050 | 400 | 0.5 | 87 | 2x60 | 220 | 8 | 1.5 | 220 | 29.3 | 65 | 16 |
| 380 | 5 | ||||||||||
| CHW87-400-063 | 400 | 0.63 | 87 | 2x60 | 220 | 8 | 1.9 | 277 | 36.9 | 65 | 16 |
| 380 | 5 | ||||||||||
| CHW87-400-100 | 400 | 1.0 | 87 | 2x60 | 220 | 12 | 3.0 | 439 | 58.5 | 65 | 16 |
| 380 | 8 | ||||||||||
| CHW87-450-040 | 450 | 0.4 | 87 | 2x60 | 220/380 | 6 | 1.4 | 176 | 23.5 | 75 | 16 |
| CHW87-450-050 | 450 | 0.5 | 87 | 2x60 | 220 | 9 | 1.7 | 220 | 29.3 | 75 | 16 |
| 380 | 6 | ||||||||||
| CHW87-450-063 | 450 | 0.63 | 87 | 2x60 | 220 | 9 | 2.2 | 277 | 36.9 | 75 | 16 |
| 380 | 6 | ||||||||||
| CHW87-450-100 | 450 | 1.0 | 87 | 2x60 | 220 | 14 | 3.4 | 439 | 58.5 | 75 | 16 |
| 380 | 9 |
We offer a contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays etc.
