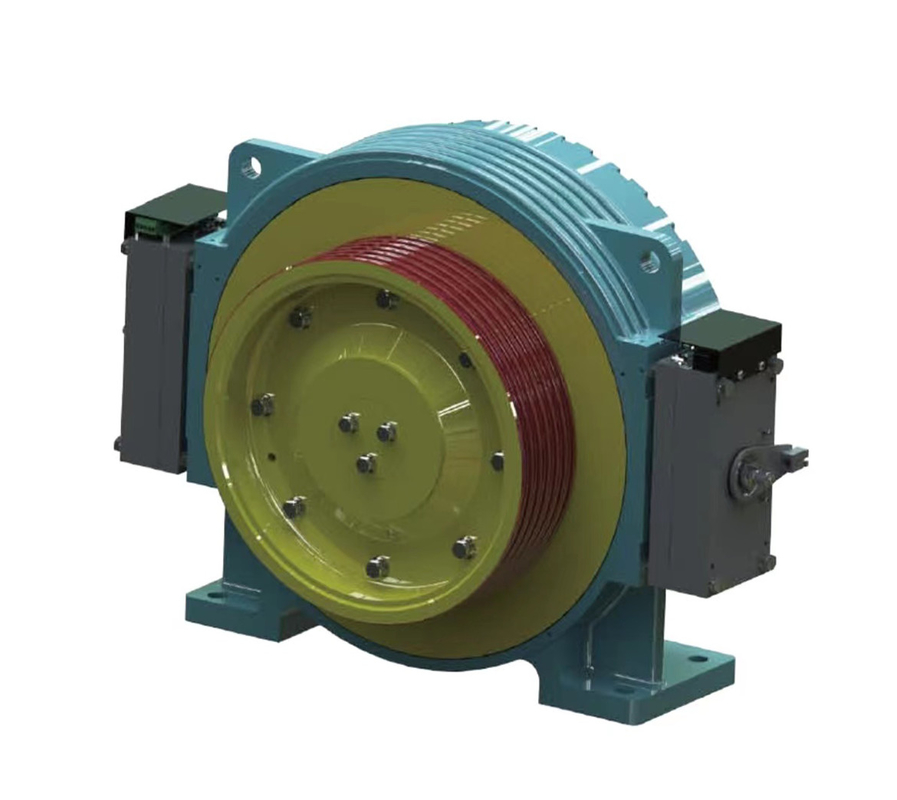

ZFW400L S Dia.400 / 450mm Elevator Machine Lift Hoisting Motor Elevator Traction System
  • ZFW400L S Dia.400 / 450mm Elevator Machine Lift Hoisting Motor Elevator Traction System
  • ZFW400L S Dia.400 / 450mm Elevator Machine Lift Hoisting Motor Elevator Traction System
  • ZFW400L S Dia.400 / 450mm Elevator Machine Lift Hoisting Motor Elevator Traction System
  • ZFW400L S Dia.400 / 450mm Elevator Machine Lift Hoisting Motor Elevator Traction System

ZFW400L S Dia.400 / 450mm Elevator Machine Lift Hoisting Motor Elevator Traction System

Place of Origin Shanghai
Brand Name ZANFENG
Certification ISO9001
Model Number ZFW400L 400/450mm
Product Details
Voltage:
380
Roping:
2:1 / 4:1
Wrap:
Single
Elv.Load:
1000-1150kg
Elv.Speed:
0.5、0.63、1、1.5、1.6、1.75、2、2.5(m/s)
Sheave Diam:
400/450mm
Duty:
S5-40%
Max. Static Load:
4000kg
Weight:
370kg
Brake:
DC110V 2X1.3
IP Code:
IP41
Ins. Class:
F
Highlight:

Elevator Traction Machine 450mm

,

Elevator Lift Hoisting Motor

,

1150Kg Elevator Traction System

Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
Negotiable,USD1200-USD2000
Packaging Details
Standard Export Packing, Fumigation-free wooden cases.
Delivery Time
5~10 work days
Payment Terms
L/C, T/T
Supply Ability
1000 Piece/Pieces per Month
Product Description

ZFW400L S Dia.400/450mm loading 1000-1150Kg Elevator Machine Lift Hoisting Motor Traction Elevator System Part

Application of elevator traction machine



Elevator traction machine is the core component of elevator system, which is mainly applied to the following aspects:

1,Residential buildings: traction machines are widely used in residential buildings, apartments, villas and other residential buildings, providing vertical transportation services to facilitate residents' floor access.

2,Commercial buildings: commercial buildings such as commercial buildings, office buildings and shopping centers also use traction machines as key components of elevator systems so that customers and employees can move between floors quickly and safely.

3,Hotels and hotels: traction machines play a role in transporting guests and luggage in hotels and hotels, providing efficient and comfortable vertical transportation services.

4,Medical facilities: medical facilities such as hospitals, clinics and nursing homes need traction machines to transport patients, doctors, nurses and other personnel to ensure rapid and safe arrival at the destination.

5,Urban transportation hub: some urban transportation hubs, such as subway stations, railway stations and airports, also use traction machines as an important part of the elevator system to facilitate passengers' travel and transfer.



ZFW400L MODEL RECOMMENDED FORM



SpecificBtion Ratio Load(Kg) Speed(m/s) Motor Sheave
Voltage(V) Power(KW) Current(A) Frequency(Hz) Pole(P) Speed(r/min) Torque (N*m) Energy(%) S Dia. (mm) R No. R Dia. (mm) R Dist (mm) Groove β° γ° RLH(m)
ZFW400L-1150-050A 2:1 1150 0.5 380 3.9 12 12.8 32 48 780 75.2 450 5 10 15 U 90 30 25
ZFW400L-1150-063A 0.63 5 12 16 60 75.7 30
ZFW400L-1150-100A 1 7.8 17 25.3 95 77.2 45
ZFW400L-1150-150A 1.5 11.8 29 38.1 143 80.9 65
ZFW400L-1150-160A 1.6 12.6 29 40.8 153 81.3 70
ZFW400L-1150-175A 1.75 13.6 29 44.5 167 82.3 75
ZFW400L-1150-200A 2 15.6 33 50.9 191 83.2 80
ZFW400L-1150-250A 2.5 19.5 46 63.7 239 84.3 95
ZFW400L-1000-050B 2:1 1000 0.5 380 3.4 10 11.2 32 42 750 74.3 450 4 10 15 U 90 30 25
ZFW400L-1000-063B 0.63 4.3 10 14.1 53 75.5 30
ZFW400L-1000-100B 1 6.7 15 22.7 85 76.5 45
ZFW400L-1000-150B 1.5 10.3 26 33.9 127 80.1 65
ZFW400L-1000-160B 1.6 10.9 26 36.3 136 80.4 70
ZFW400L-1000-175B 1.75 11.7 26 39.7 149 81.3 75
ZFW400L-1000-200B 2 13.4 28 45.3 170 82.2 80
ZFW400L-1000-250B 2.5 16.8 34 56.5 212 84 95
ZFW400L-1050-050B 2:1 1050 0.5 380 3.4 10 11.2 32 42 750 74.3 450 4 10 15 U 90 30 25
ZFW400L-1050-063B 0.63 4.3 10 14.1 53 75.5 30
ZFW400L-1050-100B 1 6.7 15 22.7 85 76.5 45
ZFW400L-1050-150B 1.5 10.3 26 33.9 127 80.1 65
ZFW400L-1050-160B 1.6 10.9 26 36.3 136 80.4 70
ZFW400L-1050-175B 1.75 11.7 26 39.7 149 81.3 75
ZFW400L-1050-200B 2 13.4 28 45.3 170 82.2 80
ZFW400L-1050-250B 2.5 16.8 34 56.5 212 84 95
ZFW400L-1150-050B 2:1 1150 0.5 380 3.9 12 11.2 32 42 890 75.2 450 5 10 15 U 90 30 25
ZFW400L-1150-063B 0.63 5 12 14.1 53 75.7 30
ZFW400L-1150-100B 1 7.8 17 22.7 85 77.2 45
ZFW400L-1150-150B 1.5 11.8 29 33.9 127 80.9 65
ZFW400L-1150-160B 1.6 12.6 29 36.3 136 81.3 70
ZFW400L-1150-175B 1.75 13.6 29 39.7 149 82.3 75
ZFW400L-1150-200B 2 15.6 33 45.3 170 83.2 80
ZFW400L-1150-250B 2.5 19.5 46 56.5 212 84.3 95
ZFW400L-1000-100B 4:1 2000 0.5 380 6.7 15 22.7 32 85 750 76.5 450 4 10 15 V 105 45 25
ZFW400L-1000-200B 1 13.4 28 45.3 170 82.2 45
ZFW400L-1000-100B 4:1 2000 0.5 380 6.7 15 22.7 32 85 750 76.5 450 4 10 15 U 90 30 25
ZFW400L-1000-200B 1 13.4 28 45.3 170 82.2 45

Optional Table



Type Load(Kg) Speed(m/s) Sheave(mm) Voltage(V)
Outer rotor traction machine
ZFW320 320-630 0.5-1.75 320 380
ZFW400L 630-1050 0.5-2.5 400 380
ZFW400L 630-825 0.5-2.5 450 380
ZFW400L 1000-1150 0.5-2.5 400/450 380
ZFW400L 1250-1600 0.5-2.5 400/480 380
ZFW480 1250-1600 1.0-2.5 450/550 380
ZFW480 2000-2500 0.5-3.0 450/480 380
Inner rotor traction machine
ZFN320 630-1150 0.5-1.75 320 380
ZFN450 1600-3000 0.5-3.0 450 380
ZFN450 1600-3000 0.5-3.0 480 380
ZFN450 1600-3000 0.5-3.0 520 380
Household elevator traction machine
ZFN200 320-450 0.4-1.0 200/240 220/380
ZFN200A 320-450 0.4-1.0 200/240 220/380
ZFG100 320-630 0.4-1.0 100 220/380
ZFG87 320-450 0.4-1.0 87 220/380
ZFG87 320-450 0.3-0.5 65 220/380








ZFW400L S Dia.400 / 450mm Elevator Machine Lift Hoisting Motor Elevator Traction System 0



Shanghai Zan Feng (CZANF) Technology Co., Ltd provides the customized service and solutions for elevator electrical system and specializes in elevator components. The product scope ranges from contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays , hoistway fixture , intercom system , traveling cables to other spare parts of elevator.

We pursue the sustainable success with customers. When it comes to Elevator components, we are about as materials as they come. That’s because we are in the elevator components many years with very wide supply system. We are more committed to the intelligent development of elevators in the near future and becoming the preferred partner for smart and sustainable city development.
