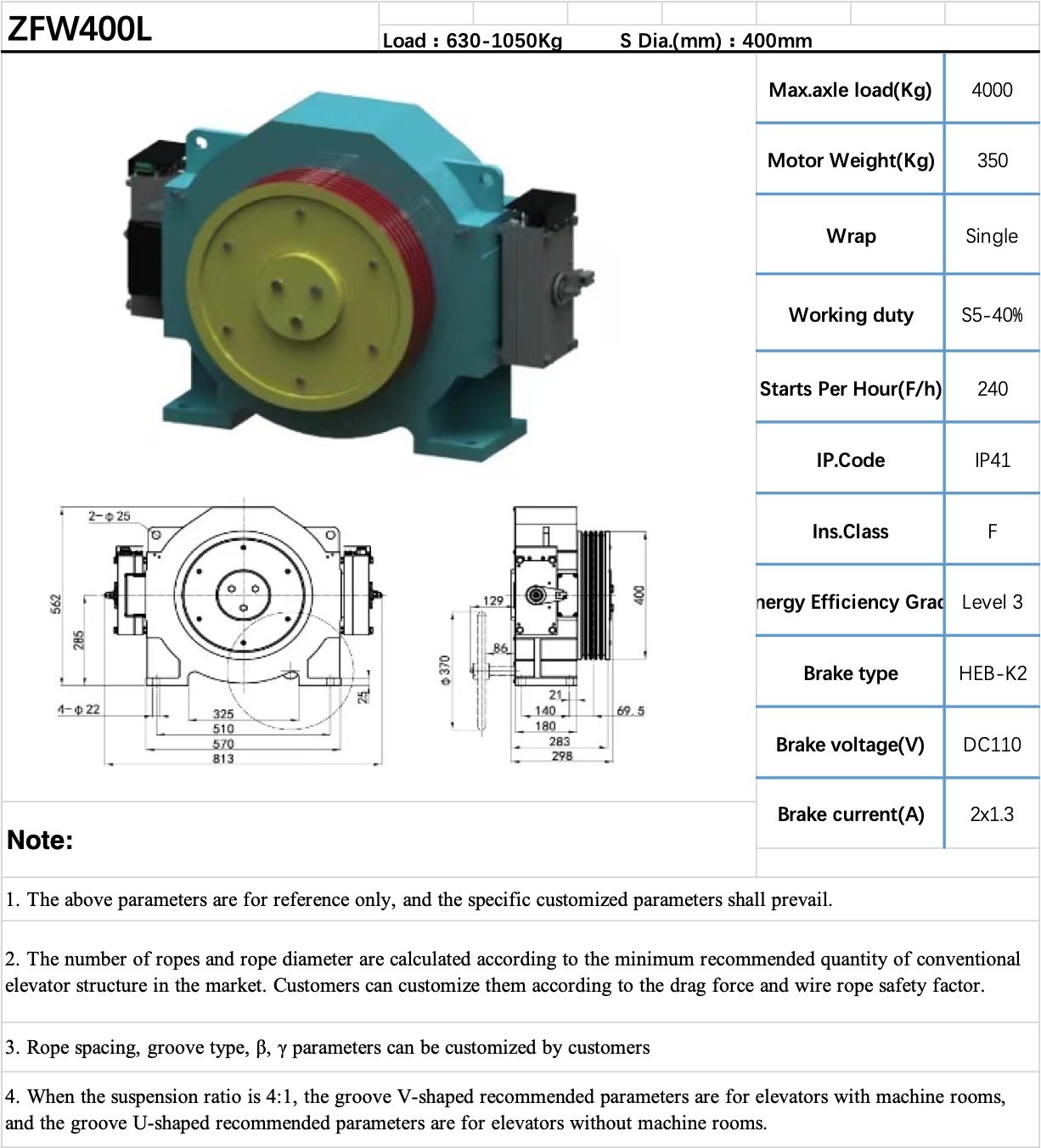

| Voltage: | 380 | Roping: | 2:1 / 4:1 |
|---|---|---|---|
| Wrap: | Single | Elv.Load: | 630-1050kg |
| Elv.Speed: | 0.5-2.5m/s | Sheave Diam: | 400mm |
| Duty: | S5-40%ED | Max. Static Load: | 4000kg |
| Weight: | 350kg | Brake: | DC110V 2X1.3 |
| IP Code: | IP41 | Ins. Class: | F |
| Highlight: | 400mm Gearless Traction Machine,1050Kg Elevator Traction Machine,Gearless Driving Motor Elevator Traction Machine |
||
REMARK

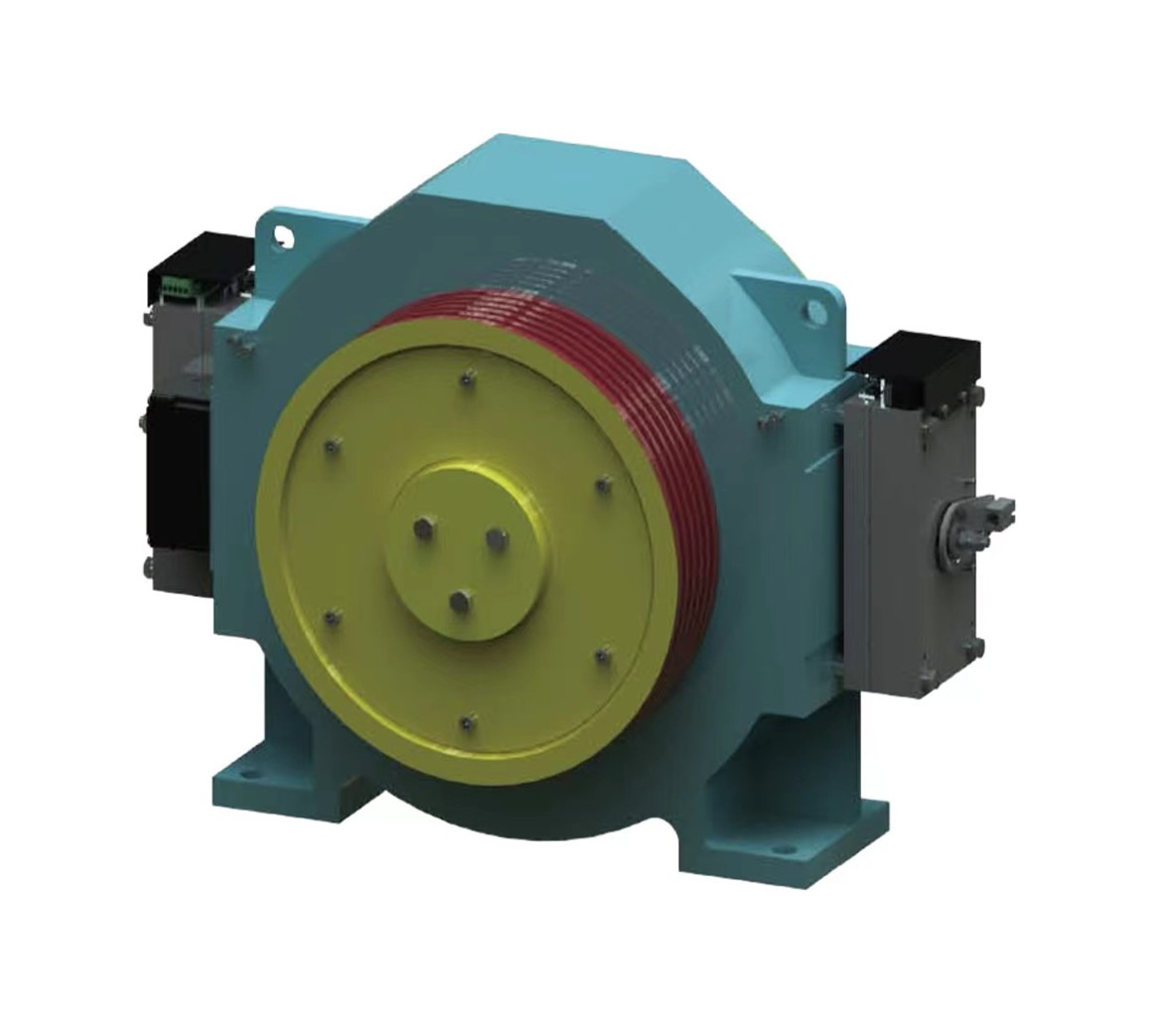

Gear-free permanent magnet synchronous traction machine is a common type of elevator traction machine. It uses the permanent magnet synchronous motor as the driving force source of the traction machine, and connects the elevator cabin with the traction machine through the main suspension cable of the elevator.
1,Low Noise and Vibration: the gear-free design reduces the noise and vibration generated by traditional gear transmission, making passengers feel more comfortable when taking the elevator.
2,High-precision control: permanent magnet synchronous motor has the characteristics of fast response and high-precision control, which can control the starting, stopping and running speed of elevator more accurately.
3,Strong reliability: Gear-free design reduces the use of mechanical transmission parts, thus having lower failure rate and longer service life.
ZFW400L MODEL RECOMMENDED FORM

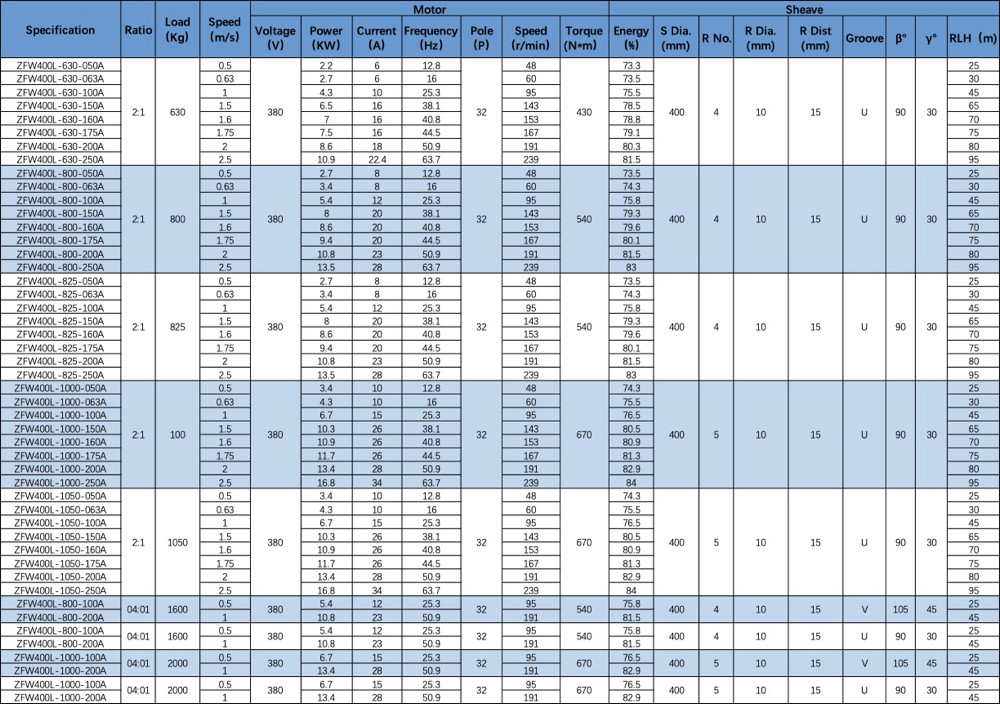

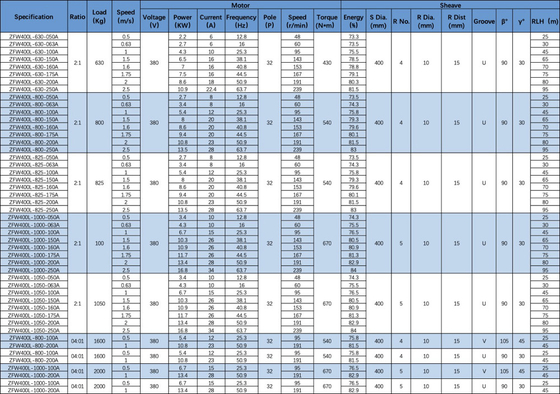

| Specification | Ratio | Load(Kg) | Speed(m/s) | Motor | Sheave | ||||||||||||||
| Voltage(V) | Power(KW) | Current(A) | Frequency(Hz) | Pole(P) | Speed(r/min) | Torque(N*m) | Energy(%) | S Dia. (mm) | R No. | R Dia. (mm) | R Dist (mm) | Groove | β° | γ° | RLH(m) | ||||
| ZFW400L-630-050A | 2:1 | 630 | 0.5 | 380 | 2.2 | 6 | 12.8 | 32 | 48 | 430 | 73.3 | 400 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-630-063A | 0.63 | 2.7 | 6 | 16 | 60 | 73.5 | 30 | ||||||||||||
| ZFW400L-630-100A | 1 | 4.3 | 10 | 25.3 | 95 | 75.5 | 45 | ||||||||||||
| ZFW400L-630-150A | 1.5 | 6.5 | 16 | 38.1 | 143 | 78.5 | 65 | ||||||||||||
| ZFW400L-630-160A | 1.6 | 7 | 16 | 40.8 | 153 | 78.8 | 70 | ||||||||||||
| ZFW400L-630-175A | 1.75 | 7.5 | 16 | 44.5 | 167 | 79.1 | 75 | ||||||||||||
| ZFW400L-630-200A | 2 | 8.6 | 18 | 50.9 | 191 | 80.3 | 80 | ||||||||||||
| ZFW400L-630-250A | 2.5 | 10.9 | 22.4 | 63.7 | 239 | 81.5 | 95 | ||||||||||||
| ZFW400L-800-050A | 2:1 | 800 | 0.5 | 380 | 2.7 | 8 | 12.8 | 32 | 48 | 540 | 73.5 | 400 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-800-063A | 0.63 | 3.4 | 8 | 16 | 60 | 74.3 | 30 | ||||||||||||
| ZFW400L-800-100A | 1 | 5.4 | 12 | 25.3 | 95 | 75.8 | 45 | ||||||||||||
| ZFW400L-800-150A | 1.5 | 8 | 20 | 38.1 | 143 | 79.3 | 65 | ||||||||||||
| ZFW400L-800-160A | 1.6 | 8.6 | 20 | 40.8 | 153 | 79.6 | 70 | ||||||||||||
| ZFW400L-800-175A | 1.75 | 9.4 | 20 | 44.5 | 167 | 80.1 | 75 | ||||||||||||
| ZFW400L-800-200A | 2 | 10.8 | 23 | 50.9 | 191 | 81.5 | 80 | ||||||||||||
| ZFW400L-800-250A | 2.5 | 13.5 | 28 | 63.7 | 239 | 83 | 95 | ||||||||||||
| ZFW400L-825-050A | 2:1 | 825 | 0.5 | 380 | 2.7 | 8 | 12.8 | 32 | 48 | 540 | 73.5 | 400 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-825-063A | 0.63 | 3.4 | 8 | 16 | 60 | 74.3 | 30 | ||||||||||||
| ZFW400L-825-100A | 1 | 5.4 | 12 | 25.3 | 95 | 75.8 | 45 | ||||||||||||
| ZFW400L-825-150A | 1.5 | 8 | 20 | 38.1 | 143 | 79.3 | 65 | ||||||||||||
| ZFW400L-825-160A | 1.6 | 8.6 | 20 | 40.8 | 153 | 79.6 | 70 | ||||||||||||
| ZFW400L-825-175A | 1.75 | 9.4 | 20 | 44.5 | 167 | 80.1 | 75 | ||||||||||||
| ZFW400L-825-200A | 2 | 10.8 | 23 | 50.9 | 191 | 81.5 | 80 | ||||||||||||
| ZFW400L-825-250A | 2.5 | 13.5 | 28 | 63.7 | 239 | 83 | 95 | ||||||||||||
| ZFW400L-1000-050A | 2:1 | 100 | 0.5 | 380 | 3.4 | 10 | 12.8 | 32 | 48 | 670 | 74.3 | 400 | 5 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-1000-063A | 0.63 | 4.3 | 10 | 16 | 60 | 75.5 | 30 | ||||||||||||
| ZFW400L-1000-100A | 1 | 6.7 | 15 | 25.3 | 95 | 76.5 | 45 | ||||||||||||
| ZFW400L-1000-150A | 1.5 | 10.3 | 26 | 38.1 | 143 | 80.5 | 65 | ||||||||||||
| ZFW400L-1000-160A | 1.6 | 10.9 | 26 | 40.8 | 153 | 80.9 | 70 | ||||||||||||
| ZFW400L-1000-175A | 1.75 | 11.7 | 26 | 44.5 | 167 | 81.3 | 75 | ||||||||||||
| ZFW400L-1000-200A | 2 | 13.4 | 28 | 50.9 | 191 | 82.9 | 80 | ||||||||||||
| ZFW400L-1000-250A | 2.5 | 16.8 | 34 | 63.7 | 239 | 84 | 95 | ||||||||||||
| ZFW400L-1050-050A | 2:1 | 1050 | 0.5 | 380 | 3.4 | 10 | 12.8 | 32 | 48 | 670 | 74.3 | 400 | 5 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-1050-063A | 0.63 | 4.3 | 10 | 16 | 60 | 75.5 | 30 | ||||||||||||
| ZFW400L-1050-100A | 1 | 6.7 | 15 | 25.3 | 95 | 76.5 | 45 | ||||||||||||
| ZFW400L-1050-150A | 1.5 | 10.3 | 26 | 38.1 | 143 | 80.5 | 65 | ||||||||||||
| ZFW400L-1050-160A | 1.6 | 10.9 | 26 | 40.8 | 153 | 80.9 | 70 | ||||||||||||
| ZFW400L-1050-175A | 1.75 | 11.7 | 26 | 44.5 | 167 | 81.3 | 75 | ||||||||||||
| ZFW400L-1050-200A | 2 | 13.4 | 28 | 50.9 | 191 | 82.9 | 80 | ||||||||||||
| ZFW400L-1050-250A | 2.5 | 16.8 | 34 | 63.7 | 239 | 84 | 95 | ||||||||||||
| ZFW400L-800-100A | 4:01 | 1600 | 0.5 | 380 | 5.4 | 12 | 25.3 | 32 | 95 | 540 | 75.8 | 400 | 4 | 10 | 15 | V | 105 | 45 | 25 |
| ZFW400L-800-200A | 1 | 10.8 | 23 | 50.9 | 191 | 81.5 | 45 | ||||||||||||
| ZFW400L-800-100A | 4:01 | 1600 | 0.5 | 380 | 5.4 | 12 | 25.3 | 32 | 95 | 540 | 75.8 | 400 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-800-200A | 1 | 10.8 | 23 | 50.9 | 191 | 81.5 | 45 | ||||||||||||
| ZFW400L-1000-100A | 4:01 | 2000 | 0.5 | 380 | 6.7 | 15 | 25.3 | 32 | 95 | 670 | 76.5 | 400 | 5 | 10 | 15 | V | 105 | 45 | 25 |
| ZFW400L-1000-200A | 1 | 13.4 | 28 | 50.9 | 191 | 82.9 | 45 | ||||||||||||
| ZFW400L-1000-100A | 4:01 | 2000 | 0.5 | 380 | 6.7 | 15 | 25.3 | 32 | 95 | 670 | 76.5 | 400 | 5 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-1000-200A | 1 | 13.4 | 28 | 50.9 | 191 | 82.9 | 45 | ||||||||||||
Optional Table

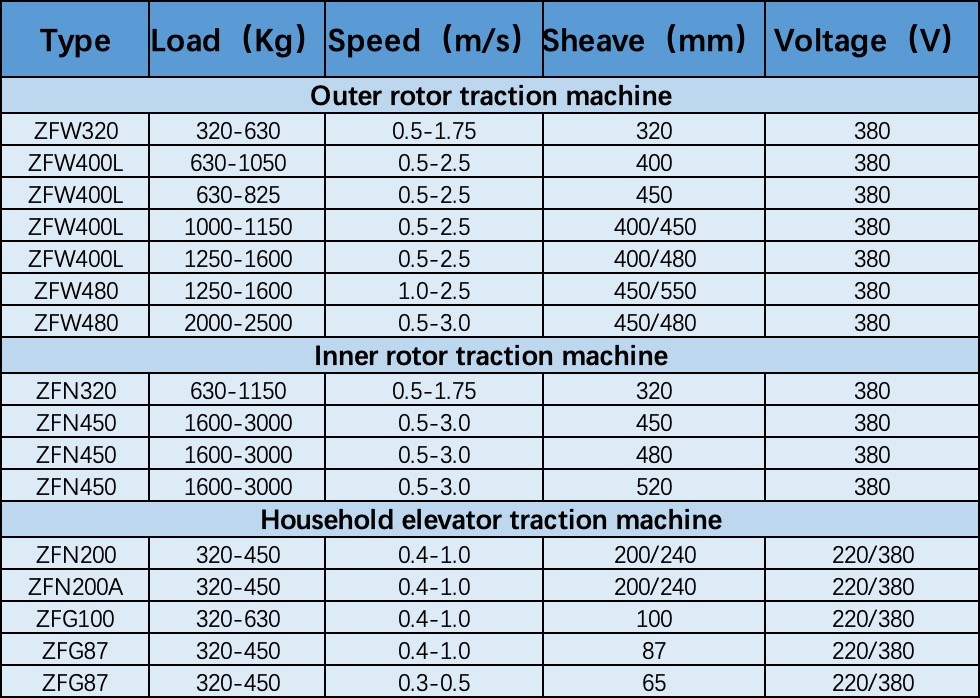

| Type | Load(Kg) | Speed(m/s) | Sheave(mm) | Voltage(V) |
| Outer rotor traction machine | ||||
| ZFW320 | 320-630 | 0.5-1.75 | 320 | 380 |
| ZFW400L | 630-1050 | 0.5-2.5 | 400 | 380 |
| ZFW400L | 630-825 | 0.5-2.5 | 450 | 380 |
| ZFW400L | 1000-1150 | 0.5-2.5 | 400/450 | 380 |
| ZFW400L | 1250-1600 | 0.5-2.5 | 400/480 | 380 |
| ZFW480 | 1250-1600 | 1.0-2.5 | 450/550 | 380 |
| ZFW480 | 2000-2500 | 0.5-3.0 | 450/480 | 380 |
| Inner rotor traction machine | ||||
| ZFN320 | 630-1150 | 0.5-1.75 | 320 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 450 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 480 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 520 | 380 |
| Household elevator traction machine | ||||
| ZFN200 | 320-450 | 0.4-1.0 | 200/240 | 220/380 |
| ZFN200A | 320-450 | 0.4-1.0 | 200/240 | 220/380 |
| ZFG100 | 320-630 | 0.4-1.0 | 100 | 220/380 |
| ZFG87 | 320-450 | 0.4-1.0 | 87 | 220/380 |
| ZFG87 | 320-450 | 0.3-0.5 | 65 | 220/380 |
