| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | CZ-V005 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $8000-2000/pieces or Negotiable |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 1-15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Set/ Month |
| Product Name: | Villa Elevator | Drive Type: | Traction Drive Type |
|---|---|---|---|
| Rated Speed: | 0.5-4.0m/s | Usage: | Residential Elevator Lift |
| Model: | Passenger Elevator, Private Elevators ,hotel | Machine Room: | Small Machine Room/machine Roomless |
| Material: | Steel Plate Paint, Hidden Lamp Belt | OEM/ODM: | Yes |
| Capacity: | 450-1600Kg,,630kg-1600kg,320kg，200Kg | ||
| Highlight: | Traction Drive Type Home Villa Elevator,0.5m/S Home Elevator Lift,Household Hosting Machine Electric Elevator Lift |
||
Residential Elevators For Sale Elevator Hoistway Dimensions Parts Of Traction Elevator
Villa Elevator
Traction elevator is a common type of elevator, which has the following advantages:
1,Smooth and comfortable: Traction elevators use electric motors and traction mechanisms to provide power, making the process of elevator rising and falling more stable. Passengers can feel less turbulence and vibration when taking the elevator, providing a more comfortable riding experience.
2,High efficiency and energy saving: Traction elevators usually use frequency converter control system, which can adjust the speed and power of elevators according to requirements. This means that when the elevator is not running, the system can reduce power consumption, save energy, and provide higher transportation efficiency during peak hours.
3,Large load capacity: the traction elevator has a high load capacity and can carry a large number of passengers and goods. This makes them very suitable in commercial buildings, logistics and storage, public transportation and other places to meet the vertical transportation needs of different needs.
Villa Elevator
Advanced drive system
Armed with advanced gearless permanent magnet synchronous traction machine(PMSM),our elevators are famous for their simple structure, high speed and stability. They can reach maximum speed up to the world leading level, therefore, basically suiting building with different floors.
The application of a series of intelligent technologies to Tenau villa not only brings you comfort but also health.
| Machine room-less passenger elevator | ||||||||
| Load(kg) | NO.of persons | speed(m/s) | door opening type | opening size (width X high mm) |
net size (width X high mm) |
Hoistway net size (mm) | ||
| (width X high mm) | OH | PP | ||||||
| 630 | 8 | 1.0 | split door | 800 | 1300x1250 | 2100x1700 | 4500 | 1500 |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| 800 | 10 | 1.0 | 800 | 1400x1350 | 2200x1800 | 4500 | 1500 | |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| 1000 | 13 | 1.0 | 900 | 1600x1500 | 2400x2000 | 4500 | 1500 | |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| 1150 | 15 | 1.0 | 1000 | 1750x1500 | 2600x2000 | 4500 | 1500 | |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| Small machine room passenger elevator | ||||||||||
| Load(kg) | NO.of persons | speed(m/s) | door opening type | opening size (width X high mm) |
net size (width X high mm) |
Hoistway net size (mm) | machine room size(mm) | |||
| (width X high mm) | OH | PP | width X high mm |
MR.H | ||||||
| 630 | 8 | 1.0 | split door | 800 | 1300x1250 | 1900x1900 | 4400 | 1400 | 1900x1900 | 2300 |
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4700 | 1600 | ||||||||
| 800 | 10 | 1.0 | 800 | 1400x1350 | 2000x2000 | 4400 | 1400 | 2000x2000 | ||
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4600 | 1600 | ||||||||
| 1000 | 13 | 1.0 | 900 | 1600x1500 | 2200x2200 | 4400 | 1400 | 2200x2200 | ||
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4600 | 1600 | ||||||||
| 1150 | 15 | 1.0 | 1000 | 1750x1500 | 2300x2200 | 4400 | 1400 | 2300x2200 | ||
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4600 | 1600 | ||||||||
| lnformation Display | |
| Hall and car digital position indicator | Running number display |
| Hall and car call/register | Floor display character arbitrary setting |
| Hall and car running direction display | |
| Steady Running | |
| Return to base station without call | Pre-torque output |
| Full collective control | Upon elevator floor setting |
| Independentservice | Hoistway self-learning |
| Full-load direct running (LNS] | End station for speed and floor number correction |
| Automatic door switch | Parking |
The application of a series of intelligent technologies to Tenau villa not only brings you comfort but also health.

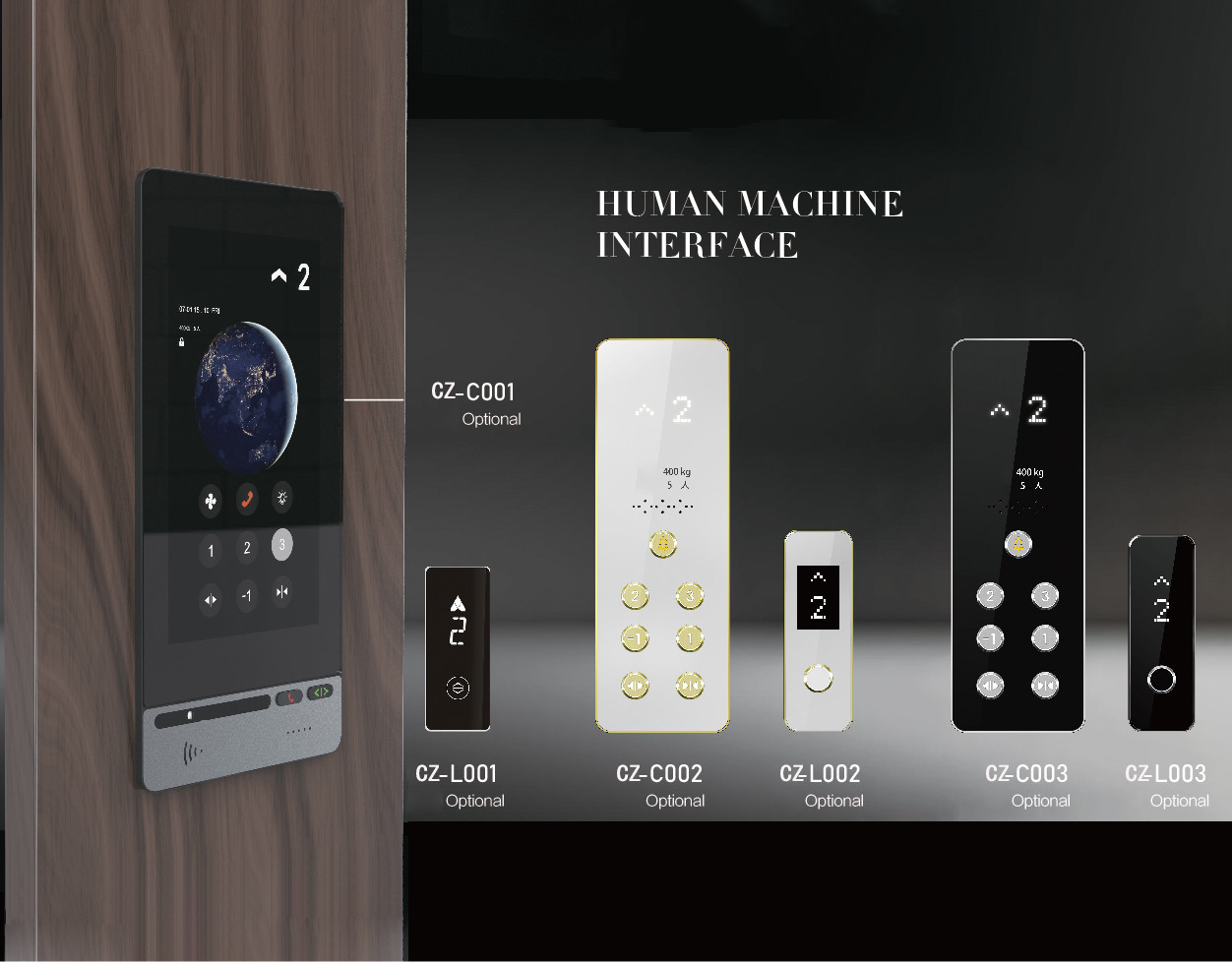

We offer a contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays etc.
FAQ
1. What can I get the quotation?
Within 24 hours the inquiry will be reply.If you are very urgent the price,
pls call us or tell us your email so that we will regard your inquiry priority.
2. How can i get a sample to check your quality?
Provide our existing sample to check our quality,the shipping cost need to paid by you.After price confirmation,you can
require for samples to check our quality,but sample cost need to paid by you.the sample cost can be refundable if you bulk order quantity reach our request.
3. What kind of files do you accept for printing?
PDF, Adoble Illustrator, CDR
4. Can you do the design for us?
Yes. We have a professional designing team,just tell us your details and we will help to carry out your idrars into perfect products.it's also ok if you do not have the complete files.Sent us high resolution images,we can design the layout you want.
If you send your LOGO to us,we will make the artwork for you reference.
Should you have any question ,pls do not hesitate to contact me.
