| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | CZ-V008 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $8000-2000/pieces or Negotiable |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 1-15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Set/ Month |
| Capacity: | 2-6 Persons | Control: | Monarch Control |
|---|---|---|---|
| Design: | Modern Design | Door: | Automatic Sliding Door |
| Drive: | VVVF Drive | Floor: | 3-20 Floors |
| Material: | High Quality Material | Name: | Home Villa Elevator |
| Power: | 2.2KW-4.5KW | Speed: | 1.0m/s |
| Voltage: | 220V/380V | ||
| High Light: | Monarch System Home Elevator Lift Machine,VVVF Intelligent Traction Elevator,Intelligent Traction Home Villa Elevator 1.0m/s |
||

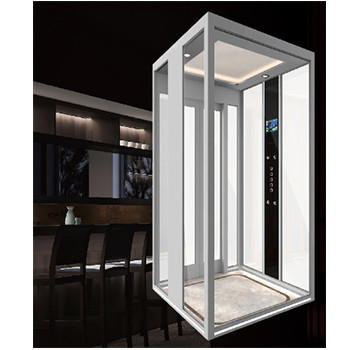

Intelligent Traction Elevator VVVF Lift Monarch System Home Elevator Lift Machine
Traction Elevator Characteristics
Traction elevator is a common type of elevator with the following characteristics:
1,Traction system: the traction elevator runs through a set of wire ropes and traction mechanisms. The motor drives the traction mechanism to make the wire rope twine on the traction wheel to lift or lower the elevator carriage.
2,High Space Utilization: The Machine Room for traction elevators is usually located at the top or beside the building, not on each floor. This can save space and leave more usable area inside the building.
3,Smooth and comfortable: the traction elevator can provide a relatively stable riding experience during operation. Due to the use of wire ropes and traction mechanisms, vibration and noise are reduced, making passengers feel comfortable.
4,Large carrying capacity: Traction elevators can usually carry a large number of passengers and goods. Its design and mechanical structure make the elevator have larger weight bearing capacity and can meet various needs.
5,High Reliability: Traction elevators usually adopt advanced control systems and safety devices, which can provide a high level of safety and reliability. For example, emergency parking device, overload protection device, fault detection system, etc.
6,Flexibility: Traction elevators can be applied to various building types and heights, from residential buildings to commercial buildings. They can be customized according to specific requirements to meet different space and transportation requirements.
China Made Traction Elevator
Celing: Titanium gold stainless steel, hidden light source, LED light
Car wall: Titanium alloy aluminum profle frame, leminated glass
Floor: PVC
Advanced drive system
1.High efficiency: the traction elevator uses the motor as the driving force source, and transmits the power to the elevator carriage through the wire rope and traction mechanism. The motor has high rotating efficiency, can provide larger power output, and makes the elevator run more efficiently.
2.Accurate control: The driving system of traction elevator can realize accurate speed and position control. Through the start-stop and frequency conversion control of the motor, the running speed of the elevator can be easily adjusted so that it can accurately stop at each floor.
3.Energy saving: due to the adoption of motor drive, traction elevators can make better use of energy and have higher energy efficiency. In addition, energy-saving measures can also be applied in the drive system, such as regenerative braking device, to convert braking energy into electric energy and feed it back to the power grid, thus reducing energy waste.
| Machine room-less passenger elevator | ||||||||
| Load(kg) | NO.of persons | speed(m/s) | door opening type | opening size (width X high mm) |
net size (width X high mm) |
Hoistway net size (mm) | ||
| (width X high mm) | OH | PP | ||||||
| 630 | 8 | 1.0 | split door | 800 | 1300x1250 | 2100x1700 | 4500 | 1500 |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| 800 | 10 | 1.0 | 800 | 1400x1350 | 2200x1800 | 4500 | 1500 | |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| 1000 | 13 | 1.0 | 900 | 1600x1500 | 2400x2000 | 4500 | 1500 | |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| 1150 | 15 | 1.0 | 1000 | 1750x1500 | 2600x2000 | 4500 | 1500 | |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| Small machine room passenger elevator | ||||||||||
| Load(kg) | NO.of persons | speed(m/s) | door opening type | opening size (width X high mm) |
net size (width X high mm) |
Hoistway net size (mm) | machine room size(mm) | |||
| (width X high mm) | OH | PP | width X high mm |
MR.H | ||||||
| 630 | 8 | 1.0 | split door | 800 | 1300x1250 | 1900x1900 | 4400 | 1400 | 1900x1900 | 2300 |
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4700 | 1600 | ||||||||
| 800 | 10 | 1.0 | 800 | 1400x1350 | 2000x2000 | 4400 | 1400 | 2000x2000 | ||
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4600 | 1600 | ||||||||
| 1000 | 13 | 1.0 | 900 | 1600x1500 | 2200x2200 | 4400 | 1400 | 2200x2200 | ||
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4600 | 1600 | ||||||||
| 1150 | 15 | 1.0 | 1000 | 1750x1500 | 2300x2200 | 4400 | 1400 | 2300x2200 | ||
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4600 | 1600 | ||||||||
| lnformation Display | |
| Hall and car digital position indicator | Running number display |
| Hall and car call/register | Floor display character arbitrary setting |
| Hall and car running direction display | |
| Steady Running | |
| Return to base station without call | Pre-torque output |
| Full collective control | Upon elevator floor setting |
| Independentservice | Hoistway self-learning |
| Full-load direct running (LNS] | End station for speed and floor number correction |
| Automatic door switch | Parking |
The application of a series of intelligent technologies to Tenau villa not only brings you comfort but also health.
We offer a contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays etc.
