| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | CZ-V043 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $8000/pieces or Negotiable |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 1-15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 Set/ Month |
| Product Product Namename: | Home Elevator, Used Home Elevators For Sale | Usage: | Villa Elevators |
|---|---|---|---|
| Design Style: | Golden Age | Floor: | PVC |
| Control System: | VVVF Controller | Car Wall: | Wood Veneer, Mirrorstainless Steel |
| Ceiling: | Mirror Stainless Steel | Rated Speed: | 1.0-4.0m/s |
| Machine Room: | Small Machine Room/machine Roomless | Service: | OEM & ODM |
| Capacity: | 450-1600KG | OEM/ODM: | Yes |
| High Light: | VVVF Home Villa Elevator,stainless steel Home Villa Elevator,Metal stoving small straight elevator |
||

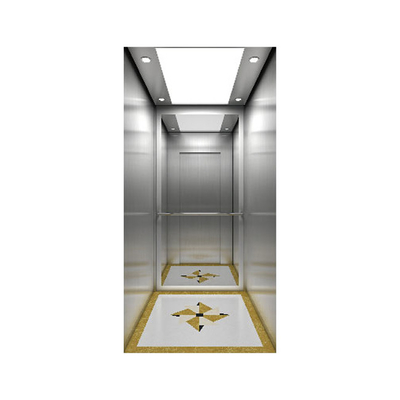

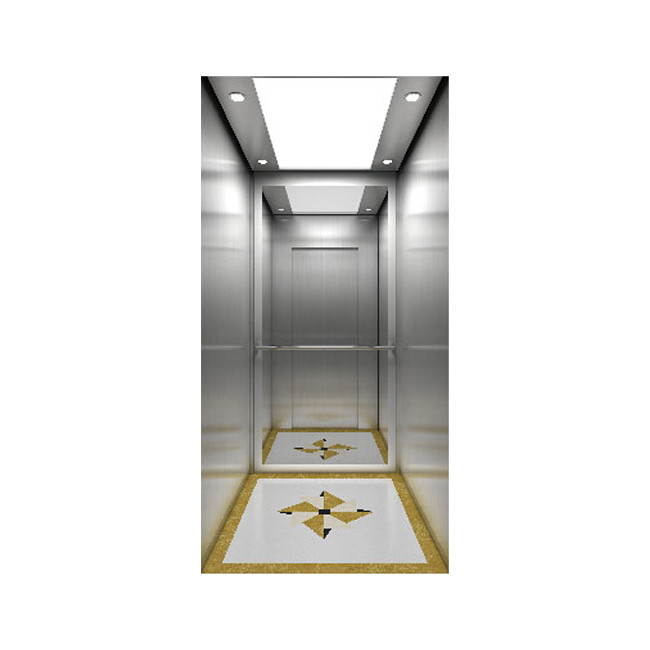

Metal stoving varnish mirror stainless steel Home Villa Small Elevator Straight Ladder

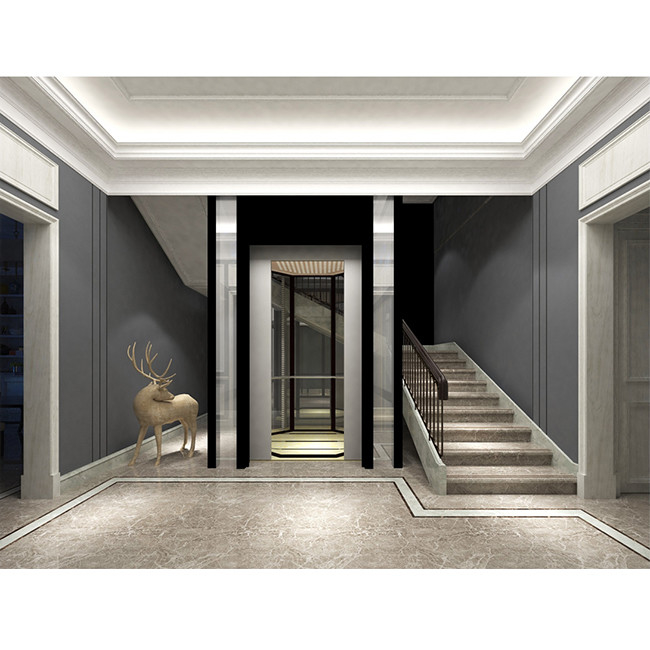

Open space for your luxury villa

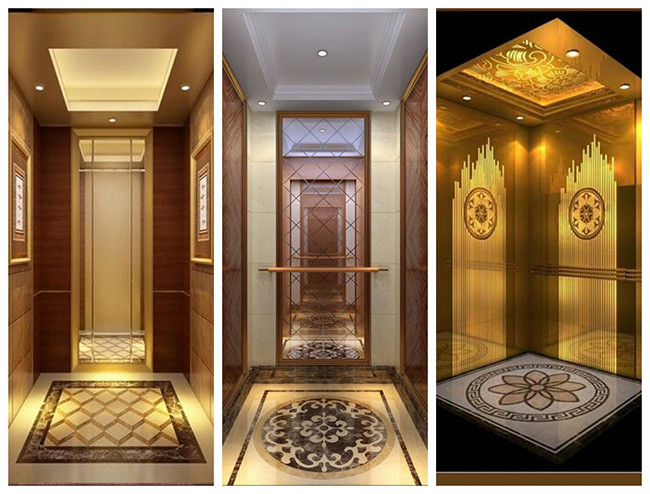

To highlight your identity,even the lift car of elevator is no exception.
With compact design adopted for villa elevator, it saves the using area of well by 15%-20% and could provide larger size of lift car in the same well.
The maximum net height of lift car can reach2200mm[roofheight: 3m),which can bring you open space experience and make you go in and out more easily.
It can save the using area of well at least by 15%
Optional
| Machine room-less passenger elevator | ||||||||
| Load(kg) | NO.of persons | speed(m/s) | door opening type | opening size (width X high mm) |
net size (width X high mm) |
Hoistway net size (mm) | ||
| (width X high mm) | OH | PP | ||||||
| 630 | 8 | 1.0 | split door | 800 | 1300x1250 | 2100x1700 | 4500 | 1500 |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| 800 | 10 | 1.0 | 800 | 1400x1350 | 2200x1800 | 4500 | 1500 | |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| 1000 | 13 | 1.0 | 900 | 1600x1500 | 2400x2000 | 4500 | 1500 | |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| 1150 | 15 | 1.0 | 1000 | 1750x1500 | 2600x2000 | 4500 | 1500 | |
| 1.5 | 4600 | 1600 | ||||||
| 1.75 | 4700 | 1700 | ||||||
| Small machine room passenger elevator | ||||||||||
| Load(kg) | NO.of persons | speed(m/s) | door opening type | opening size (width X high mm) |
net size (width X high mm) |
Hoistway net size (mm) | machine room size(mm) | |||
| (width X high mm) | OH | PP | width X high mm |
MR.H | ||||||
| 630 | 8 | 1.0 | split door | 800 | 1300x1250 | 1900x1900 | 4400 | 1400 | 1900x1900 | 2300 |
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4700 | 1600 | ||||||||
| 800 | 10 | 1.0 | 800 | 1400x1350 | 2000x2000 | 4400 | 1400 | 2000x2000 | ||
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4600 | 1600 | ||||||||
| 1000 | 13 | 1.0 | 900 | 1600x1500 | 2200x2200 | 4400 | 1400 | 2200x2200 | ||
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4600 | 1600 | ||||||||
| 1150 | 15 | 1.0 | 1000 | 1750x1500 | 2300x2200 | 4400 | 1400 | 2300x2200 | ||
| 1.5 | 4500 | 1500 | ||||||||
| 1.75 | 4600 | 1600 | ||||||||
Green and Noiseless Design Gives You Healthy Life
Equivalent to that released by Filters PM2.5 to make lift car
The anion it releases is equivalent to that released by a big tree with the height of 5m.In the meantimeit can sterilize absorb methanolremoves peculiar
smell&second-hand smoke and filters PM2.5 to make lift car filled with exceptional fresh air.
The application of a series of intelligent technologies to Tenau villa not only brings you comfort but also health.
| General Protection | lnformation Display | ||
| Closing time protection | Protection against reverse travel | Hall and car digital position indicator | Running number display |
| Emergency lighting in the car | Prevent slipping protection | Hall and car call/register | Floor display character arbitrary setting |
| Overload warning[Caution light and buzzer] | Safety circuit protection | Hall and car running direction display | |
| The screen door protection device | Limit protection | Steady Running | |
| Car roof and control cabinet emergency electric operation | Upper and lower limit protection device | Return to base station without call | Pre-torque output |
| Fault automatic diagnosis | Door interlock protection | Full collective control | Upon elevator floor setting |
| Alarm bell | Operation contactor protection | Independentservice | Hoistway self-learning |
| Hitting the bottom buffer device | Brake detection and protection | Full-load direct running (LNS] | End station for speed and floor number correction |
| Outside door zone without opening door | Manual brake release rescue | Automatic door switch | Parking |
The application of a series of intelligent technologies to Tenau villa not only brings you comfort but also health.
We offer a contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays etc.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
Should you have any question ,pls do not hesitate to contact me.
