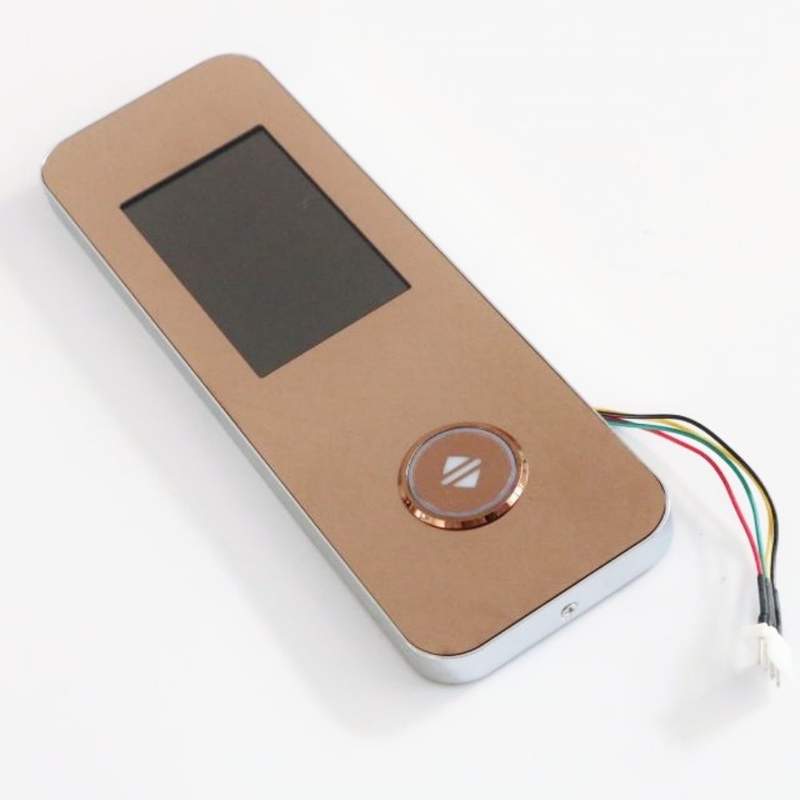

Elevator Lift Landing Operating Panel LOP For Elevator
The elevator external call is generally composed of the following main parts:
I. Display part
- Floor display screen:
- Function: Displays the current floor where the elevator is located and information such as the running direction of the elevator. When the elevator is running between different floors, the floor number on the external call panel will change accordingly, allowing people waiting for the elevator to clearly understand the position dynamics of the elevator. At the same time, the indication of the running direction can also help people judge whether the elevator is about to reach their own floor and the traveling direction of the elevator, so as to be prepared in advance.
- Display method: Generally, liquid crystal display (LCD) or light emitting diode display (LED) is used. The numbers and arrow icons are clearly visible, with moderate brightness and can be easily recognized under various lighting conditions.
II. Button part
-
Up button and down button:
- Up button:
- Function: When passengers need to take the elevator to a higher floor, press the up button to send a request signal to the elevator control system. This signal will be transmitted to the elevator control cabinet, and the elevator system will decide whether to respond to this up request according to the current running state and other request signals. For example, if the elevator is running upward and is not fully loaded, it may stop and pick up passengers when passing this floor.
- Design features: Generally, it is a button with an upward arrow icon. The color is usually different from the down button for quick distinction. The button usually adopts a push-type design with moderate pressing force, which not only ensures the sensitivity of operation but also prevents accidental touches.
- Down button:
- Function: When passengers want to go to a lower floor, press the down button to send a down request to the elevator system. Similar to the up button, the elevator control system will decide whether to respond to this request according to various conditions. For example, if the elevator is running downward or there is no other up request after completing tasks on a higher floor, it may respond to the down request and stop at this floor.
- Design features: A button with a downward arrow icon. The color contrasts with the up button. It also adopts a push-type design with a reliable triggering mechanism to ensure that the signal is accurately transmitted to the elevator system.
-
Call button (sometimes also called emergency call button):
- Function: In an emergency, passengers can press this button to get in touch with the elevator duty room or monitoring center. For example, when the elevator malfunctions and passengers are trapped, pressing the call button can send a distress signal to the outside world to obtain rescue in time. In addition, in some special cases, such as encountering danger or needing urgent help, you can also seek help through this button.
- Design features: Usually a conspicuous red button, which may be marked with words such as "emergency call" and "distress call". The position of the button is usually relatively conspicuous, so that passengers can quickly find and press it in an emergency. After being pressed, an indicator light may flash or a specific sound signal may be emitted to confirm that the call has been triggered.
III. Shell and installation part
-
Panel shell:
- Function: Protect the electronic components and buttons inside the external call panel from damage caused by external impacts, dust, moisture and other factors. At the same time, the shell also plays a decorative role, making the external call panel coordinate with the overall decoration style of the building.
- Material and design: Generally, durable materials such as plastic, metal or a combination of both are used. The surface of the shell may be specially treated, such as spraying, wire drawing, etc., to improve its wear resistance and corrosion resistance. In design, functions such as waterproof and dustproof will be considered to ensure normal operation under various environmental conditions.
-
Installation bracket:
- Function: Used to fix the external call panel on the wall of the elevator hall. The installation bracket needs to have sufficient strength and stability to ensure that the external call panel will not loosen or fall off during long-term use.
- Design features: Generally made of metal materials, with adjustable installation holes to adapt to different installation needs. The design of the installation bracket will consider the compatibility with the building structure to ensure a simple and firm installation process.
Parameter
Product Type |
Elevator LOP CZXK27 |
Input Voltage |
DC24V |
Materials |
Golden hair pattern stainless steel + mirror stainless steel frame |
Installation way |
surface mounted ,slim type |
Button type |
Round Touch Button,Up Arrow, Down Arrow, Lock Button Optional
|
Display item |
Blue background, white glow, 4.3 inch LCD display |
Interface |
Monarch NICE3000 |
Push button |
LED Light,Braille Optional |
Guarantee period |
12 months |
Shipping way |
By air ,or by sea |
LOP Size |
300*90*13 |
with cable |
Button and display with wire |
After-sale Service |
Online technical support,Online Training
|
We have more than 15 years experience to provide the spare parts of elevator .The product scope ranges from contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays , hoistway fixture , intercom system , traveling cables to other spare parts of elevator. as well as home and passenger elevator .
We pursue the sustainable success with customers. When it comes to Elevator components, we are about as materials as they come. That’s because we are in the elevator components many years with very wide supply system. We are more committed to the intelligent development of elevators in the near future and becoming the preferred partner for smart and sustainable city development.

FAQ
Q1.Can I have a sample order for it ?
A: Yes, we welcome sample order to test and check quality.Elevator often need 3days to delivery
Q2: Do you offer guarantee for the products?
A: Yes, all the products are with 1 year warranty. Including the COP LOP Elevator button , displays
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea which will take about one month to arrive your sea port. If small parts or urgent order,we can deliver
by DHL and FedEx also airline ship is alternative.
Q4.What's your payment item?
A: Our standard payment is T/T in advance, Credit Card , Trade Assurance on Alibaba,L/C also OK
Q5. Is it OK to print my logo on it ?
A: Yes.. Esp COP LOP .,which can show the LOGO .
