| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | x-LOP13 |
| Minimum Order Quantity: | 1Piece/Pieces |
| Price: | negotiation,USD |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 3~10work days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Piece/Pieces /Month |
| Product Name: | Elevator Touch Lop | Input Voltage: | DC18-36V |
|---|---|---|---|
| Warranty: | 1 Year | Transportation: | Air，negotiation |
| Display: | 3.2 Inch Segment | Panel Material: | Tempered Glass |
| Communication Protocol: | Monarch，negotiation | MOQ: | 1，can Get Sample |
| Highlight: | Toughened Glass Elevator Control Panel,Monarch Control Elevator Control Panel,3.2 Inch Elevator Control Panel |
||

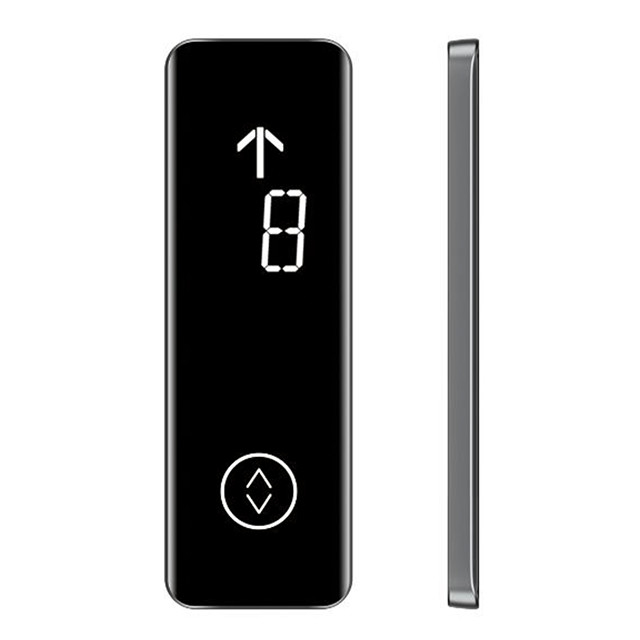

Toughened Glass Monarch Control 3.2 Inch Segment Display Elevator Control Panel Touch LOP Of Lift
"Elevator touch LOP temper glass panel material" means that the elevator external call Panel (LOP) uses Temper Glass, a sturdy and durable material, and has the function of touch operation.
This design has the following advantages:
High safety: The temper glass has high strength and can withstand certain external impact, reducing the risk of panel rupture.
For example, in the process of transporting heavy objects, accidentally colliding with the elevator call panel, the temper glass material is not easy to break, reducing the potential injury to personnel.
Good aesthetics: the temper glass surface is smooth and flat, with good texture, which can improve the overall appearance of the elevator.
Like an elevator in a high-end hotel, the use of temper glass panels will be more refined and luxurious.
Touch operation is convenient: Touch design makes the user operation more simple and direct.
For example, the elderly and children can easily call the elevator by touch.
| Model | Size(L*W*H) | Display | Outer Frame | Button | Instalation Method |
| x-LOP03 | 200.1*66.6*11 | 2.8"TFT | Aluminum alloy carved | Touch Button | Wall hung |

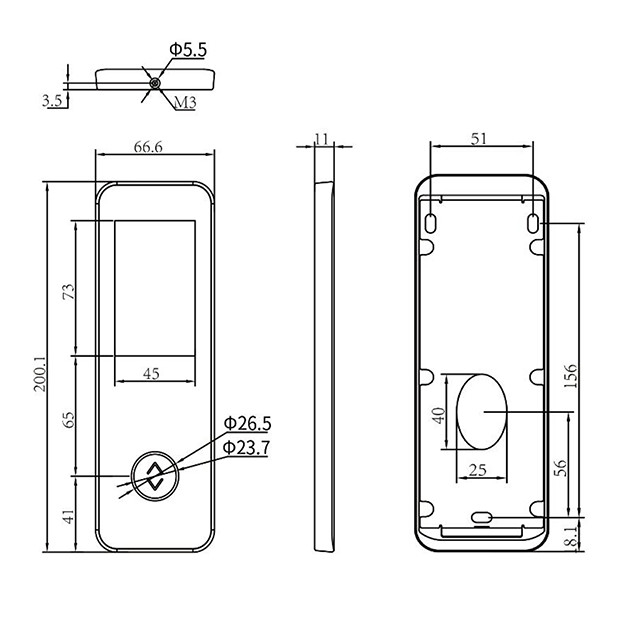

| x-LOP13 | 200.1*66.6*11 | 3.2"Segment | Aluminum alloy carved | Touch Button | Wall hung |
| x-LOP04 | 205*66*11.8 | 2.8"TFT | Aluminum alloy carved | Touch Button | Wall hung |
| x-LOP14 | 205*66*11.8 | 3.2"Segment | Aluminum alloy carved | Touch Button | Wall hung |
| x-LOP05 | 205*66.5*12 | 2.8"TFT | Zinc alloy | Touch Button | Wall hung |
| x-LOP15 | 205*66.5*12 | 3.2"Segment | Zinc alloy | Touch Button | Wall hung |
| x-LOP06 | 205*66.5*13 | 2.8"TFT | Zinc alloy | Touch Button | Wall hung |
| x-LOP16 | 205*66.5*13 | 3.2"Segment | Zinc alloy | Touch Button | Wall hung |
| x-LOP20 | 240*80*12 | 4.3"TFT | Aluminum alloy carved | Push/Touch Button | Wall hung |
| x-LOP30 | 240*80*12 | 4.3"TFT | Aluminum alloy carved | Push/Touch Button | Wall hung |
| x-LOP21 | 250*80*13 | 4.3"TFT | Zinc alloy | Push/Touch Button | Wall hung |
| x-LOP31 | 250*80*13 | 4.3"TFT | Zinc alloy | Push/Touch Button | Wall hung |
Features :
The elevator indicator /display what we supplied includes LED Dispaly, Dot Matrix Display , LCD display , TFT display with paralle or series interface . The Input signal only can be 7 segment .
About US
FAQ
1. How to order ?
Inquiry - quotation - confirm-send Pl - make the payment - arrange the parts-delivery - receive the parts.
2. What about the quality of your products ?
All of our products are new and original,we have 100% gurantee for contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays , hoistway fixture , intercom system , traveling cables to other spare parts of elevator. as well as home and passenger elevator .
3. How about the price of products ?
Rices depends on your purchase unit. The more quantity,the lower price. our price is competitive
amoung competitors in the same field.
4. When you deliver products ?
We have thousands of products available in stock, which can ensure to send you goods within
