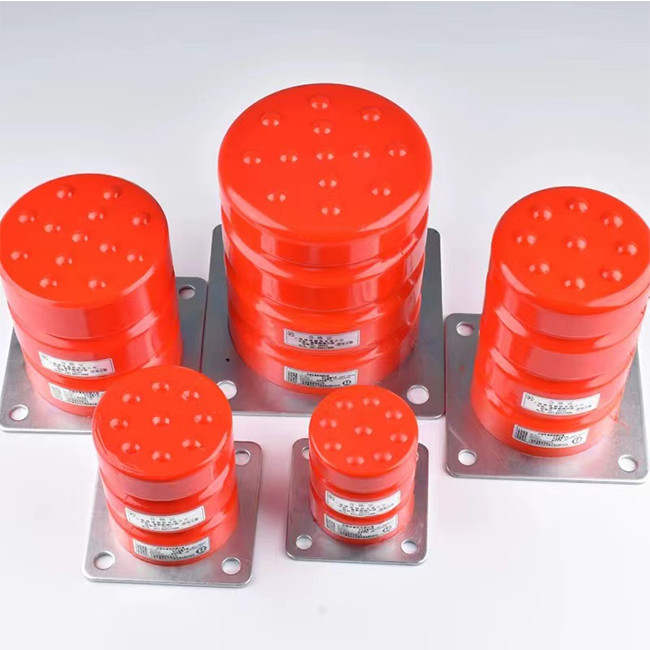

Polyurethane Elevator Buffer Lift Device Elevator Parts Supplier

Elevators using polyurethane buffers have the following advantages:

Good damping effect: polyurethane material has good elasticity, which can effectively absorb and reduce the impact force generated when the elevator stops or collides. It can distribute the impact force to the whole buffer, thus reducing the impact on the elevator itself and passengers.

Efficient energy absorption: polyurethane buffer has high energy absorption capacity, which can convert mechanical energy into heat energy, thus effectively reducing impact force. This helps to protect the elevator structure and provide a more comfortable ride experience.

Low maintenance cost: polyurethane buffer has the characteristics of long service life and wear resistance, and is not easily affected by external environment. Compared with other types of buffers, they require less maintenance and less replacement, thus reducing the operating costs of elevators.

High Space Utilization rate: Compared with traditional hydraulic buffer, polyurethane buffer has smaller size and weight. This makes the elevator design more compact and makes better use of space.







ZF-HC Standard Specification For Polyurethane Buffer
Type	Stoke H(mm)	Specifications (φD×H)	Allowablegrossmass (Kg)	Mounting dimension				Rated speed(m/s)	Attestation
				B	b	h	∮
ZF-HC-L1	70	φ65*80	200~1200	95	65	4	12	≤1.0	GB
ZF-HC-L2	70	φ80*80	200~1200	108	80	4	12	≤1.0	无
ZF-HC-L3	90	φ80x10C	200~2000	108	80	4	12	≤1.0	GE
ZF-HC-L4	121	φ80x128	200~2000	108	80	4	12	≤1.0	无
ZF-HC-L5	72	φ100×80	500~2000	128	96	4	14	≤1.0	无
ZF-HC-L6	88	φ100×100	220~2500	128	96	4	14	≤1.0	GB
ZF-HC-L7	99	φ100×120	500~2500	128	96	4	14	≤1.0	GB
ZF-HC-L	44	φ100×16	500~3000	128	96	4	14	≤1.0	无
ZF-HC-L9	177	φ100x200	500~2600	128	96	4	14	≤1.0	无
ZF-HC-L10	90	φ120×100	500~3000	160	26	4	14	≤1.0	无
ZF-HC-L11	165	φ120×192	1000~3500	160	126	4	14	≤1.0	GB
ZF-HC-L12	121	φ130×150	800~4800	160	126	4	14	≤1.0	GB
ZF-HC-L13	70	φ130×200	1000~4200	160	126	4	14	≤1.0	B
ZF-HC-L14	108	φ140x120	500~3000	160	126	4	14	≤1.0	无
ZF-HC-L15	162	φ150×180	1800~4000	200	156	4	14	≤1.0	无
ZF-HC-L16	199	φ150×240	1000~4500	200	156	4	14	≤1.0	无
ZF-HC-L17	184	160×200	1800~5800	200	156	4	14	≤1.0	GB
ZF-HC-L18	44	φ200×160	1800~6000	246	196	4	16	≤1.0	无
ZF-HC-L19	150	φ200×200	1800~7500	246	196	4	16	≤1.0	GB
ZF-HC-L2C	198	φ200x220	1800~7800	246	196	4	16	≤1.0	无
ZF-HC-L21	225	φ200×250	1800~8000	246	196	4	16	≤1.0	无
ZF-HC-L22	80	φ250×200	2000~8000	320	250	4	18	≤1.0	无
ZF-HC-L23	220	φ250x250	2000~8200	320	250	4	18	≤1.0	无
ZF-HC-L24	299	φ250×320	2000~8500	320	250	6	18	≤1.0	无
ZF-HC-L25	230	φ320×250	2000~9000	400	315	6	22	≤1.0	无
ZF-YD5588	79	φ100×100	200~2500	150	125	6	15	≤1.0	GB
ZF-YD5589	89	φ100×125	600~1800	150	125	6	15	≤1.0	GB
ZF-YD5590	140	φ125×200	1600~3100	180	140	6	15	≤1.0	GB
HC-B-2	44	φ100×60	500~2000	128	96	4	14	≤0.63	GB





















FAQ

---

Q1.Can I have a sample order for it ?
A: Yes, we welcome sample order to test and check quality.

Q2: Do you offer guarantee for the products?
A: Yes, all the products are with 1 year warranty.

Q3. Do you have certificates for your products?
A: :Yes,some of products have CE,KC,SAA,TUV GS Certifications.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea which will take about one month to arrive your sea port. If small parts or urgent order,we can deliver
by DHL and FedEx also airline ship is alternative.

Q5.What's your payment item?
A: Our standard payment is T/T in advance, Credit Card , E-Checking.

Q6. Is it OK to print my logo on it ?
A: Yes. Please inform us formally before our production and confirm the design firstly.
