Factory Price Elevator Parts Safety Survival Gear Lift Elevator Safety Clamp Gear



Elevator instantaneous Safety clamp,also known as Elevator speed protector, is a Safety Device used in Elevator system. It is mainly used to monitor the running speed of the elevator. Once the speed of the elevator exceeds the set safety range, the overspeed will occur, and the instantaneous safety clamp will start quickly to ensure the safe stop of the elevator.

Instantaneous safety tongs are usually composed of speed sensors and emergency braking devices. The speed sensor is installed in the elevator shaft or machine room to monitor the speed of the elevator. When the elevator speed exceeds the preset safety range, the sensor will send a signal to the emergency braking device to enable it to start quickly.

The emergency braking device generally adopts the form of electromagnetic braking or friction braking, and slows down the running speed of the elevator and finally stops by applying braking force. In this way, the instantaneous safety tongs can respond quickly when the elevator overspeeds to prevent dangerous situations such as elevator accidents or landslides.

The function of the elevator instantaneous safety clamp is to protect the safety of passengers and elevators, especially in the case of elevator overspeed or accident. It is an important safety device in elevator system, conforms to relevant safety standards and regulations, and is widely used in various types of elevators.





Catalogue of safety gear products
NO.	Mode	Type	Rated Speed	P+Q	Guide	Executive standard

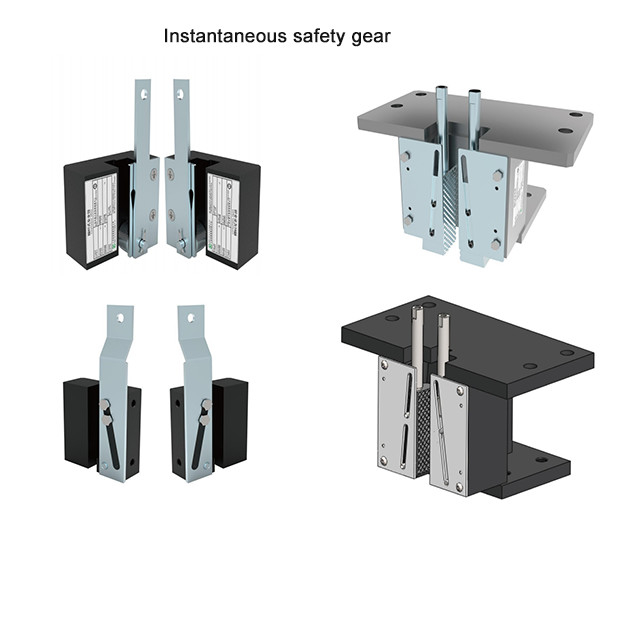

1	ZF.QS12D	Instantaneously type safety gear	≤0.63m/s	≤1250kg	≤10mm	GB
2	ZF.QS12E	Instantaneously type safety gear	≤0.63m/s	≤1350kg	≤10mm	GB

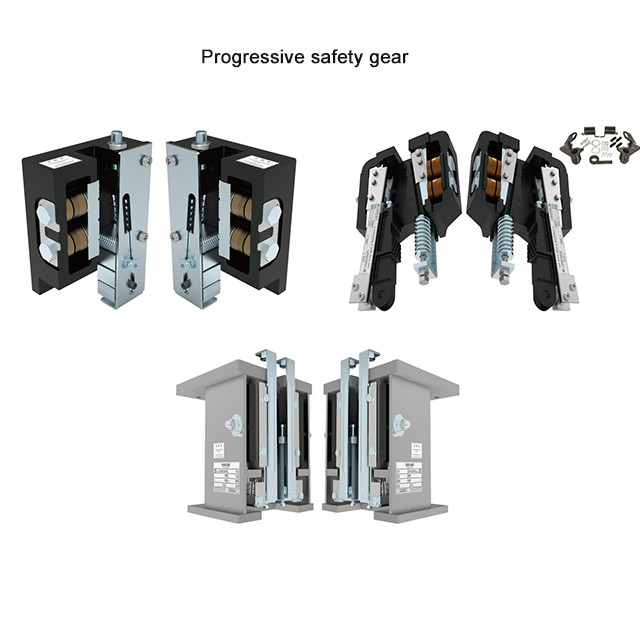

3	ZF.QJ32A	Progressive type safety gear	≤2.5m/s	750~3200kg	≤16mm	GB
4	ZF.QJ38C	Progressive type safety gear	≤2.5m/s	700~3800kg	≤16mm	GB
5	ZF.QJ40S	Progressive type safety gear	≤2.5m/s	1000~4000kg	≤16mm	GB
6	ZF.QS80A	Instantaneously type safety gear	≤0.63m/s	≤7200kg	≤16mm	GB
7	ZF.QS90A	Instantaneously type safety gear	≤0.63m/s	≤12500kg	≤16mm	GB



Picture details

Our products



1. Button series: ordinary button, induction button, lock button

2. Elevator display: TFT Video Machine, image machine, LCD, 7-Segment, dot matrix, etc.

3. Elevator COP LOP series, Touch COP LOP, etc.

4. Elevator Hall Lantern

5. Elevator traction machine

6. Elevator safety components

7. Customized house hold Villa elevator series
