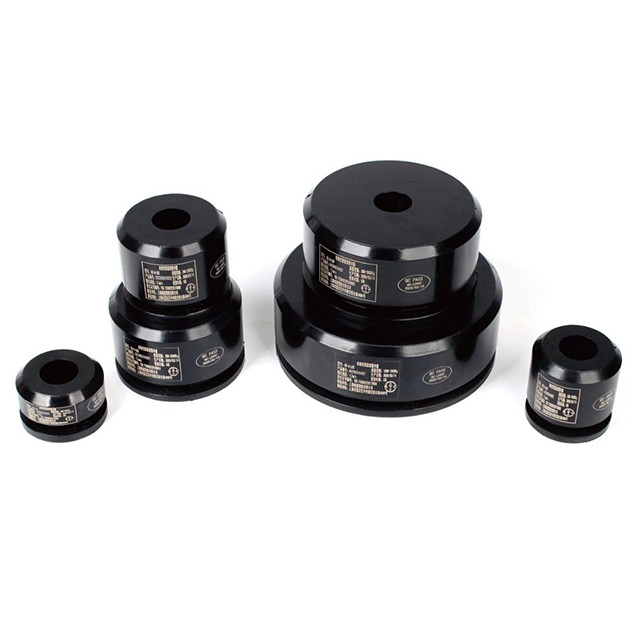

GB CE Lift Polyurethane Buffer Device Elevator Safety Part



Elevator polyurethane buffer is a common elevator safety device, which is used to slow down the impact force of elevators under operating or abnormal conditions and ensure the safety of passengers and equipment.

The polyurethane buffer is made of polyurethane material and is usually installed at the bottom of the elevator shaft and connected to the elevator pit. When the elevator reaches the stop point in the descending process, the buffer will absorb the impact energy, thus reducing the impact force to the elevator and passengers.

Polyurethane material has good elasticity and wear resistance, and can quickly restore to its original state when the elevator stops, so as to be used in the next operation. In addition, the polyurethane buffer can also be adjusted according to the weight and speed of the elevator to ensure adaptation to the needs of different situations.

Elevator polyurethane buffer plays an important role in elevator system. It can effectively reduce the impact force of elevator when it stops and protect the safety of passengers and equipment. At the same time, due to its reliability and durability, polyurethane buffer has also been widely used and recognized.

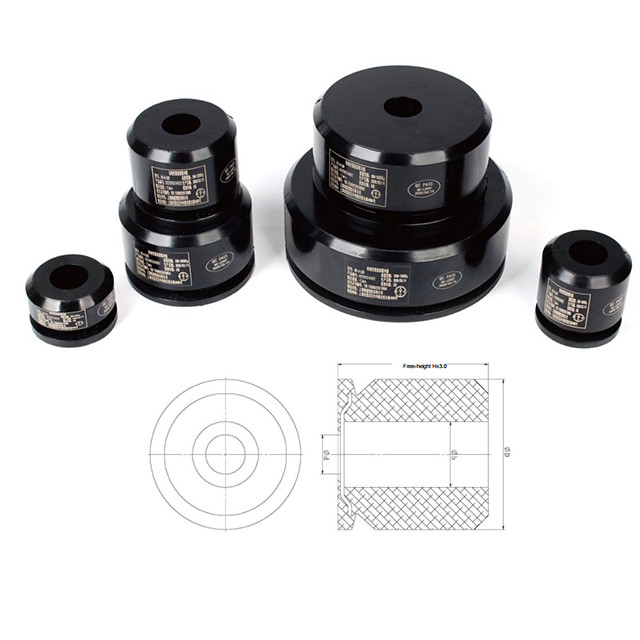

HC Standard Specification For Polyurethane Buffer
Type	Stoke H(mm)	Specifications (φD×H)	Allowablegrossmass (Kg)	Mounting dimension				Rated speed(m/s)	Attestation
				B	b	h	∮
HC-A-1	34	φ80×50	200~500	80	35	50	17	≤1.0	GB
HC-B-1	45	φ80×51	200~1200	80	35	50	17	≤0.63	GB
HC-B-3	24	φ80×30	220~600	80	35	30	17	≤0.63	GB
HC-A-L01	69	φ80×80	230~1600	80	35	80	17	≤1.0	GB
HC-A-L02	48	φ100×80	240~2500	100	35	80	17	≤1.0	GB
HC-A-L03	51	φ125×80	230~3500	125	35	80	17	≤1.0	GB
HC-A-L04	53	φ165×80	800~5000	165	35	80	17	≤1.0	GB
HC-A-L05	64	φ220×80	800~7200	220	35	80	17	≤1.0	GB
HC-A-LH	26	φ125×200	220~1800	125	35	200	17	≤1.0	GB
ZF-CE-01	45	φ80×80	230~1000	80	35	80	17	≤1.0	CE
ZF-CE-03	53	φ125×80	650~3500	125	35	80	17	≤1.0	CE
ZF-CE-04	43	φ165×80	300~5000	165	35	80	17	≤1.0	CE

















FAQ

---

Q1.Can I have a sample order for it ?
A: Yes, we welcome sample order to test and check quality.

Q2: Do you offer guarantee for the products?
A: Yes, all the products are with 1 year warranty.

Q3. Do you have certificates for your products?
A: :Yes,some of products have CE,KC,SAA,TUV GS Certifications.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea which will take about one month to arrive your sea port. If small parts or urgent order,we can deliver
by DHL and FedEx also airline ship is alternative.

Q5.What's your payment item?
A: Our standard payment is T/T in advance, Credit Card , E-Checking.

Q6. Is it OK to print my logo on it ?
A: Yes. Please inform us formally before our production and confirm the design firstly.
