| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | ZFW400L 450mm |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable,USD1200-USD2000 |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 5~10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Voltage: | 380V | Roping: | 2:1 Or 4:1 |
|---|---|---|---|
| Wrap: | Single | Elv.Load: | 630kg-825kg |
| Elv.Speed: | 0.5-2.5m/s | Sheave Diam: | 450mm |
| Duty: | S5-40% | Max. Static Load: | 4000kg |
| Weight: | 330kg | Brake: | DC110V 2X1.3 |
| IP Code: | IP41 | Ins. Class: | F |
| High Light: | Traction Type Home Elevator Part,Elevator Main Engine Traction Machine,Home Lift Drive System 380V |
||
Traction Type Home Elevator Part Drive System Main Engine Traction Machine For Lift
We offer elevator traction machines of different specifications to choose from.
The load range is 320KG-3000KG, the speed is 0.5m/s-3m/s, the diameter of traction wheel has multiple choices, 320mm, 400mm, 450mm, 480mm, 520mm, 550mm, etc.
In addition, we also provide other elevator spare parts, elevator buttons, display, Hall Lantern, fire components, Cop Lop, intelligent touch Cop Lop, elevator control cabinet, door Machine series, etc., which can fully meet your needs.
ZFW400L MODEL RECOMMENDED FORM
| Specification | Ratio |
Load (Kg) |
Speed (m/s) |
Motor | Sheave | ||||||||||||||
|
Voltage (V) |
Power (KW) |
Current (A) |
Frequency (Hz) |
Pole (P) |
Speed (r/min) |
Torque (N*m) |
Energy (%) |
S Dia. (mm) | R No. | R Dia. (mm) | R Dist (mm) | Groove | β° | γ° |
RLH (m) |
||||
| ZFW400L-630-050B | 2:1 | 630 | 0.5 | 380 | 2.2 | 6 | 11.2 | 32 | 42 | 490 | 73.3 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-630-063B | 0.63 | 2.7 | 6 | 14.1 | 53 | 73.5 | 30 | ||||||||||||
| ZFW400L-630-100B | 1 | 4.3 | 10 | 22.7 | 85 | 75.5 | 45 | ||||||||||||
| ZFW400L-630-150B | 1.5 | 6.5 | 16 | 33.9 | 127 | 78.5 | 65 | ||||||||||||
| ZFW400L-630-160B | 1.6 | 7 | 16 | 36.3 | 136 | 78.8 | 70 | ||||||||||||
| ZFW400L-630-175B | 1.75 | 7.5 | 16 | 39.7 | 149 | 79.1 | 75 | ||||||||||||
| ZFW400L-630-200B | 2 | 8.6 | 18 | 45.3 | 170 | 80.3 | 80 | ||||||||||||
| ZFW400L-630-250B | 2.5 | 10.9 | 22.4 | 56.5 | 212 | 81.5 | 95 | ||||||||||||
| ZFW400L-800-050B | 2:1 | 800 | 0.5 | 380 | 2.7 | 8 | 11.2 | 32 | 42 | 600 | 73.5 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-800-063B | 0.63 | 3.4 | 8 | 14.1 | 53 | 74.3 | 30 | ||||||||||||
| ZFW400L-800-100B | 1 | 5.4 | 12 | 22.7 | 85 | 75.8 | 45 | ||||||||||||
| ZFW400L-800-150B | 1.5 | 8 | 20 | 33.9 | 127 | 79.3 | 65 | ||||||||||||
| ZFW400L-800-160B | 1.6 | 8.6 | 20 | 36.3 | 136 | 79.6 | 70 | ||||||||||||
| ZFW400L-800-175B | 1.75 | 9.4 | 20 | 39.7 | 149 | 80.1 | 75 | ||||||||||||
| ZFW400L-800-200B | 2 | 10.8 | 23 | 45.3 | 170 | 81.5 | 80 | ||||||||||||
| ZFW400L-800-250B | 2.5 | 13.5 | 28 | 56.5 | 212 | 83 | 95 | ||||||||||||
| ZFW400L-825-050B | 2:1 | 825 | 0.5 | 380 | 2.7 | 8 | 11.2 | 32 | 42 | 600 | 73.5 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-825-063B | 0.63 | 3.4 | 8 | 14.1 | 53 | 74.3 | 30 | ||||||||||||
| ZFW400L-825-100B | 1 | 5.4 | 12 | 22.7 | 85 | 75.8 | 45 | ||||||||||||
| ZFW400L-825-150B | 1.5 | 8 | 20 | 33.9 | 127 | 79.3 | 65 | ||||||||||||
| ZFW400L-825-160B | 1.6 | 8.6 | 20 | 36.3 | 136 | 79.6 | 70 | ||||||||||||
| ZFW400L-825-175B | 1.75 | 9.4 | 20 | 39.7 | 149 | 80.1 | 75 | ||||||||||||
| ZFW400L-825-200B | 2 | 10.8 | 23 | 45.3 | 170 | 81.5 | 80 | ||||||||||||
| ZFW400L-825-250B | 2.5 | 13.5 | 28 | 56.5 | 212 | 83 | 95 | ||||||||||||
| ZFW400L-800-100B | 4:1 | 1600 | 0.5 | 380 | 5.4 | 12 | 22.7 | 32 | 85 | 600 | 75.8 | 450 | 4 | 10 | 15 | V | 105 | 45 | 25 |
| ZFW400L-800-200B | 1 | 10.8 | 23 | 45.3 | 170 | 80.8 | 45 | ||||||||||||
| ZFW400L-800-100B | 4:1 | 1600 | 0.5 | 380 | 5.4 | 12 | 22.7 | 32 | 85 | 600 | 75.8 | 450 | 4 | 10 | 15 | U | 90 | 30 | 25 |
| ZFW400L-800-200B | 1 | 10.8 | 23 | 45.3 | 170 | 80.8 | 45 | ||||||||||||

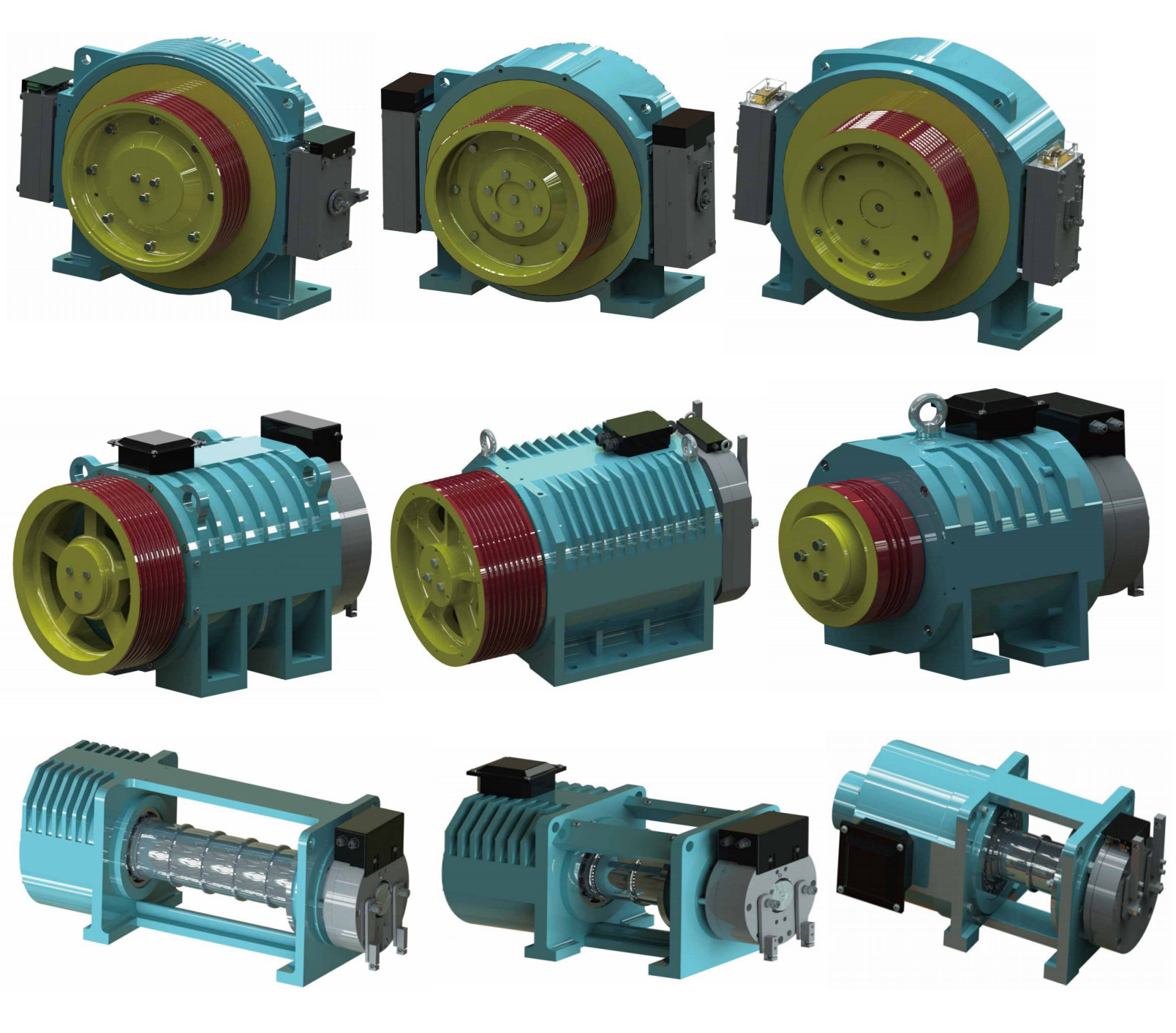

Optional Table
| Type | Load(Kg) | Speed(m/s) | Sheave(mm) | Voltage(V) |
| Outer rotor traction machine | ||||
| ZFW320 | 320-630 | 0.5-1.75 | 320 | 380 |
| ZFW400L | 630-1050 | 0.5-2.5 | 400 | 380 |
| ZFW400L | 630-825 | 0.5-2.5 | 450 | 380 |
| ZFW400L | 1000-1150 | 0.5-2.5 | 400/450 | 380 |
| ZFW400L | 1250-1600 | 0.5-2.5 | 400/480 | 380 |
| ZFW480 | 1250-1600 | 1.0-2.5 | 450/550 | 380 |
| ZFW480 | 2000-2500 | 0.5-3.0 | 450/480 | 380 |
| Inner rotor traction machine | ||||
| ZFN320 | 630-1150 | 0.5-1.75 | 320 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 450 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 480 | 380 |
| ZFN450 | 1600-3000 | 0.5-3.0 | 520 | 380 |
| Household elevator traction machine | ||||
| ZFN200 | 320-450 | 0.4-1.0 | 200/240 | 220/380 |
| ZFN200A | 320-450 | 0.4-1.0 | 200/240 | 220/380 |
| ZFG100 | 320-630 | 0.4-1.0 | 100 | 220/380 |
| ZFG87 | 320-450 | 0.4-1.0 | 87 | 220/380 |
| ZFG87 | 320-450 | 0.3-0.5 | 65 | 220/380 |
Elevator traction machine catalogue
