| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Minimum Order Quantity: | 1 Piece |
| Price: | $20000/pieces or Negotiable |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 1-15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Set/ Month |
| Certification: | ISO9001 | Model Number: | 30° Escalator |
|---|---|---|---|
| Product Name: | Escalator Safety Escalator | Speed: | 0.5m/s |
| Montor Power: | 5.5kw | Used: | Public Traffic |
| Control System: | VVVF Elevator Control System | Drive Type: | AC |
| Keywords: | Vvvf Moving Walk Escalator | Traveling Height: | 1000≤h≤3700mm |
| High Light: | ZANFENG Comfortable Safety Moving Walk Escalator,ZANFENG Moving Walk Escalator 30 Degree,ZANFENG VVVF automatic walkway |
||

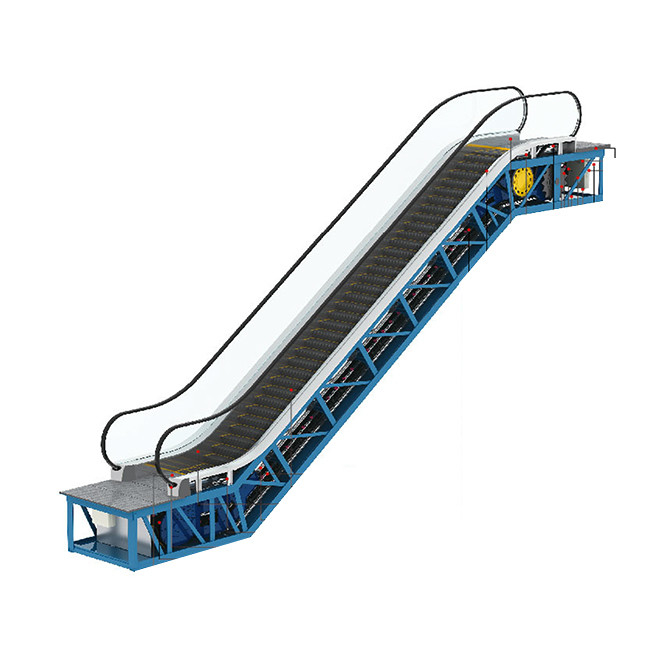

Comfortable Vvvf Escalator Safety Escalator 30 Degree Auto Smooth Operation
Speed 0.5m/s Comfortable Vvvf Moving Walk Escalator 30 Degree Auto Smooth Operation
Escalator Summary
Escalator applies advanced international technology and first-class design concept for manufacture. It reduces welding craft & technolgy. It increases high strength screw and positioning pin. It ensures smooth operation, low noise, durable, convenient repair etc. It provides vast passengers with bright, beautiful and comfortable travel through fine and exquisite structure, advanced stairway,delicate belt, deluxe and attractive outline. It lets you appreciate extraordinary charm and luxurious manner of modern buildings.
Technical Paraments
| Model | Travelling height(mm) | Net weighet KN | Supporting | Motor power | Transport size | ||
| R1 KN |
R2 KN |
H | L | ||||
|
SEM(600)-30(4500Per√h) speed 0.5m/s |
3000 | 57 | 46 | 41 | 8 | 2750 | 10900 |
| 3500 | 60 | 49 | 44 | 2780 | 11890 | ||
| 4000 | 64 | 52 | 47 | 2810 | 12880 | ||
| 4500 | 68 | 56 | 50 | 2830 | 13870 | ||
| 5000 | 71 | 59 | 53 | 2840 | 14860 | ||
| 5500 | 75 | 62 | 56 | 2860 | 15860 | ||
| 6000 | 79 | 65 | 59 | 2870 | 16860 | ||
| SEM(800)-30(6750Per√h)speed 0.5m/s | 3000 | 59 | 52 | 47 | 8 | 2750 | 10900 |
| 3500 | 63 | 56 | 50 | 2780 | 11890 | ||
| 4000 | 67 | 60 | 54 | 2810 | 12880 | ||
| 4500 | 71 | 64 | 57 | 2830 | 13870 | ||
| 5000 | 74 | 68 | 60 | 11 | 2840 | 14860 | |
| 5500 | 82 | 74 | 66 | 2860 | 15860 | ||
| 6000 | 86 | 78 | 69 | 2870 | 16860 | ||
| SEM(1000)-30(9000Per√h)speed 0.5m/s | 3000 | 63 | 59 | 53 | 8 | 2750 | 10900 |
| 3500 | 67 | 64 | 57 | 2780 | 11890 | ||
| 4000 | 72 | 68 | 61 | 2810 | 12880 | ||
| 4500 | 75 | 73 | 65 | 2830 | 13870 | ||
| 5000 | 83 | 79 | 71 | 11 | 2840 | 14860 | |
| 5500 | 87 | 84 | 75 | 2860 | 15860 | ||
| 6000 | 92 | 88 | 79 | 2870 | 16860 | ||
| Step width | A | B | C | D | E | F |
| 1000 | 1000 | 1158 | 1238 | 1600 | 1660 | 2310 |
| 800 | 800 | 959 | 1038 | 1400 | 1460 | 2110 |
| 600 | 600 | 758 | 838 | 1200 | 1260 | 1910 |
30° Escalator specifications
1,Step chain-roller inbuilt [standard)
The roller has been internally installed in the specially-designed roller step chain.It can effectivelyfulfill the reduction of the noiseduring the drivingprocess and bring about a more smooth and quietoperation.
2,Handrail inlet [standard)
Novel, trendy and attractive design for the entrance andexit of the handrail belt makes the escalators more liveand amicable.
3,Vertical type traction machine (standard)
Higher transmission effectiveness, lower noise andlonger service hours.
4,Moving directions and failure display [standard)
By means of observing the digital readings on the displaying plates mounted on both sides of the skirtsboard at the entrance andexit of the escalator [or movingwalks), the maintenance work can be made promptly andeasily.
5,Illumination for the passengers (standard)
Green light softly beams out from the space betweenthe engaged teeth of the two neighboring steps toremind the passengers tobe aware of the levelsections both at the entrance and exit, resulting inincreased security for the passengers.
6,Emergency brake device (optional)
The skirt board illumination arranged along side thesteps' arc moving contour makes the passengers feelmore comfortable and safe.
7,Heating device loptional
Each escalator usually installs three heating devices.One is beside the host in the upper machine room. Itmainly heats the host.The second is installed in the midescalator.And the third is in the lower part. It mainlyheats he whole escalator.
8,Variable frequency driving-vvF(optional)
When there's no load, the escalator [or moving walk)moves at low speed and when the approach of a passenger is detected, it restores to the normal speed.This shows conspicuous energy saving effects, saving upto 40% of power.
9,Electric automatic lubrication loptional)
Controlled by PC, the lubricating signals are emittedafter a preset period when the hydraulic pump isautomatically activated to conduct the lubrication.
10,Running direction indication loptional)
The running direction and forbidden display mark havebeen placed in the inlet and outlet of the handrail.Theobvious running or forbidden instruction ensures thesafe riding of the passengers with great ease.
The application of a series of intelligent technologies to Tenau villa not only brings you comfort but also health.
We offer a contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays etc.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
