| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | CZDD202 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Discussible |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 3~10work days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Name: | Elevator LOP/floor Door Dot Matrix Display Board Standard/universal | Product Item: | Elevator Dot Matrix Display |
|---|---|---|---|
| Product Style: | Elevator Spare Parts | Storage Environment: | -20℃-70℃,10-90%RH |
| MOQ: | 1pcs | Dimensions: | 70*144*9mm |
| Working Environment: | -10℃-60℃,10-90%RH | Type: | Elevator Display Board |
| Voltage: | DC16-DC36V | ||
| Highlight: | universal Dot Matrix Display Board,floor door Dot Matrix Display Board,Landing Operating Panel 36V |
||

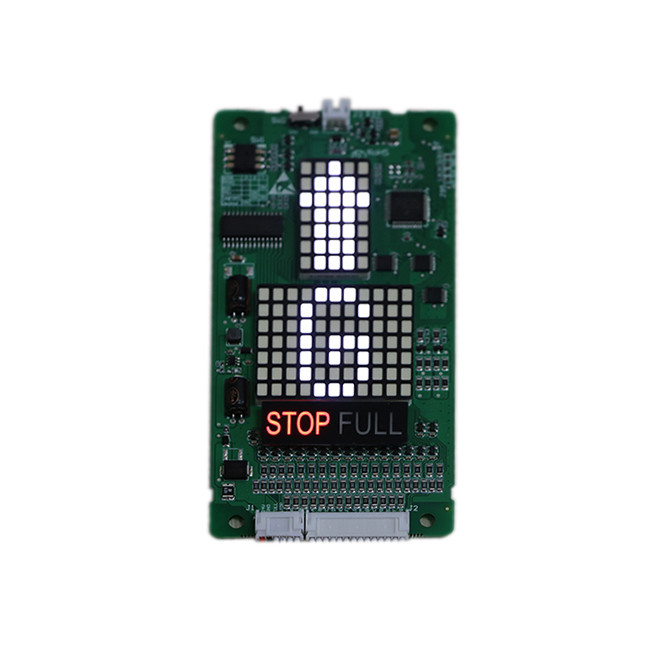

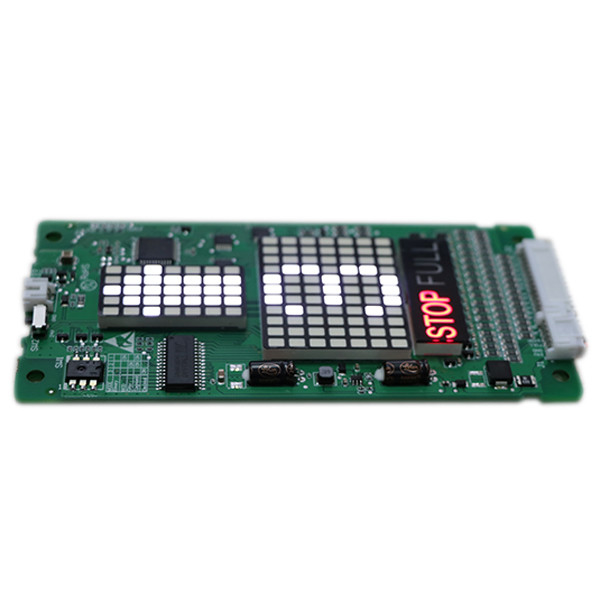

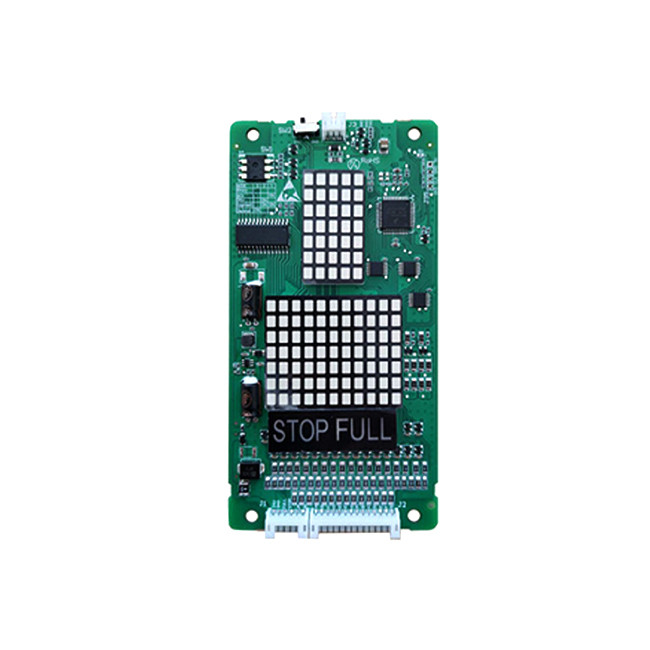

Elevator LOP/floor door dot matrix display board standard/universal
Dot Matrix Indicator
1. Dot Matrix IndicatorIt
2. Support LED dot-matrix vertical display of elevator running direction and 3-bit stop that consists of various characters
3. Support serial elevator lock and weighting signal input
Parameter
| Type | Elevator dot matrix display board |
| Input Voltage | DC24V |
| Visble area | 40*60mm |

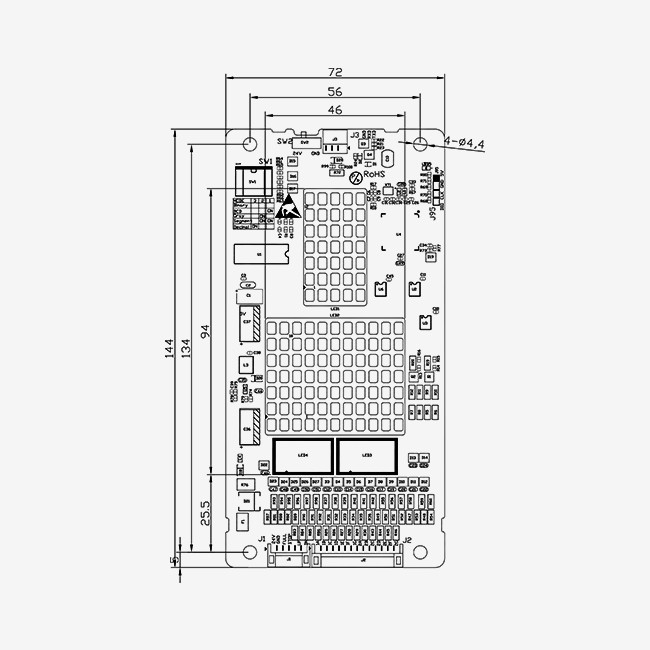

| Display board dimension | 144*72mm |
| Power parameter | DC18~36V |
| Lift Interface | Parallel interface |
| Input Signal | 7segment ,binary,BCD code , Grey code |
| LED lihgt | White ,red |
| Warranty time | 12 months |
| Shipping way | By air ,by sea |
Dot matrix display board ,mainly used todisplay the running direction of the elevator,floor position,special functions.generally used for external call and can also be used for steering panels
Features :
1.Dot Matrix indicator
2.Display elevator running state such as car moving direction as well as 3-bits stop that consists of "-" "0-9" and "A-Z"
3.The display can be vertical or horizontal
4.Full and Inspection or Stop function
5. Used for COP or LOP of Elevators
6. Online Technical support
7. Floor number can be changed.
8.Interface are parallel or Series
9. Input Signal can be 7 segment, Binary Code , BCD code ,Grey Code .
The elevator indicator /display what we supplied includes LED Dispaly, Dot Matrix Display , LCD display , TFT display with paralle or series interface . The Input signal can be 7 segment , binary code , BCD ,code , Grey code or ,RS232 ,RS485 ,CAN communication .
