Elevator Parts Lift Car Control Panel SUS COP With Box
There are differences between elevator control panels with box body and surface-mounted ones in terms of structural design, installation method, appearance effect, and maintenance convenience. The details are as follows:
Structural Design:
With box body control panel: Typically has an independent box structure, usually consisting of a back panel and side panels, in a U-shaped or other enclosed or semi-enclosed shape. The box body is used to accommodate various electrical components of the elevator control panel, such as control boards, intercoms, emergency lighting units, etc. The panel features button areas, display areas, and more.
Surface-mounted control panel: no separate enclosure structure. It typically involves installing buttons, display modules directly on a panel and securing them to the elevator cabin wall through specific installation methods. Electrical components are usually installed directly behind the panel without relying on additional enclosed boxes for protection.
Installation method:
With box body control panel: During installation, you need to first secure the box body to the car wall, possibly through bolts or hanging methods, and then install the panel onto the box body. The installation process is relatively complex.
Surface-mounted control panel: It is relatively easy to install, with the panel directly mounted on the car wall. Usually, screws or other quick installation methods are used. It has relatively low installation space requirements and can adapt to various car wall materials and structures.
Appearance effect:
With box body control panel: Due to the box body, the overall thickness is relatively thick, which might protrude from the car's wall surface by a certain distance. Its appearance style is quite traditional, but by choosing different panel materials (such as stainless steel, glass, etc.) and surface treatment techniques, it can also present different visual effects.
Surface-mounted control panel: It is thinner and can fit tightly with the car interior wall, resulting in a cleaner and smoother appearance that better blends with the car's interior decoration style, creating a simple and modern visual effect.
Ease of Maintenance:
Control panel with box body: Usually equipped with a maintenance door or detachable panel to facilitate maintenance personnel in opening the box body for inspection and maintenance of internal electrical components. The box body also provides some protection for internal circuits and components against dust, moisture, etc. affecting the components.
Surface-mounted control panel: During maintenance, the entire panel may need to be removed. Since there is no organized layout like a box, the internal wiring and components are relatively compact. When troubleshooting and repairing, careful handling is required to avoid affecting surrounding components.

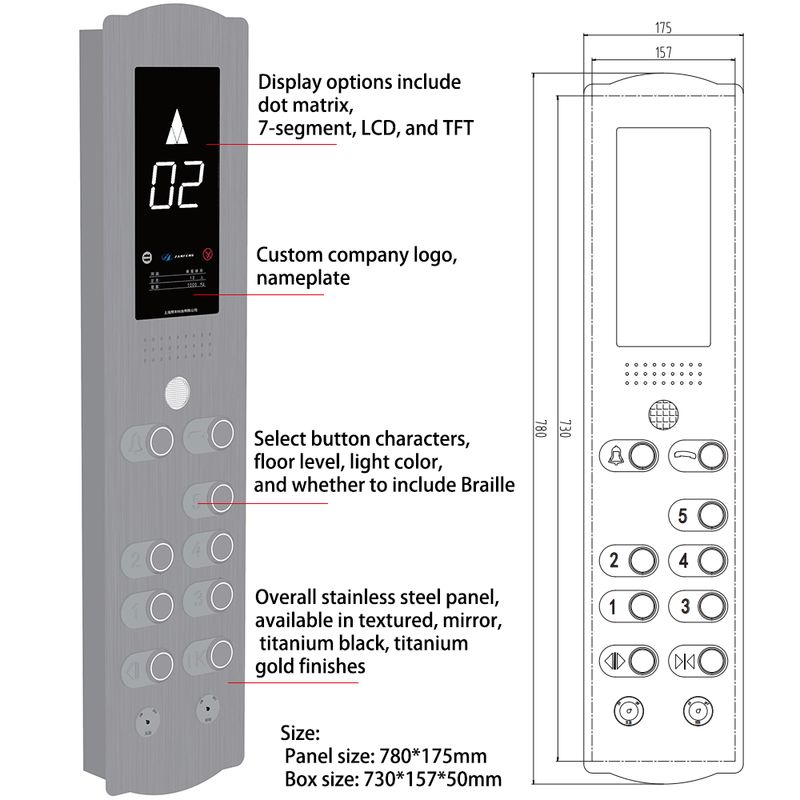

| Model |
ZFPB006 |
| Size |
Box:730mm*157mm*50mm；Panel:780mm*175 |
| Material |
SUS Frame +Glass Panel+Zinc Back panel |
| Display |
LCD,TFT,Segment,Dot Matrix Optional |
| Button |
Round/Square,Touchless/Push Optional |
Elevator Cop customizable parts
1. Display can be selected, dot matrix, LCD,TFT, etc., display area size can be selected.
2. The button can be selected, choose whether with Button, square button or round button, ordinary button or induction button
3.LOGO, nameplate design
4. Material selection, stainless steel, mirror stainless steel, etc.
......
Elevator COP Panel Features
-
Floor Buttons: The COP panel includes a set of buttons or switches representing each floor in the building. Passengers can press the button corresponding to their desired floor to initiate the elevator's movement.
-
Door Open/Close Buttons: The COP panel typically has dedicated buttons to open and close the elevator doors manually. These enable passengers to hold or release the doors as needed, especially when they require more time to enter or exit the elevator.
-
Alarm Button: An alarm button is provided on the COP panel to alert the building's security or emergency services in case of an emergency or distress situation. Pressing this button activates an audible alarm or signals a central monitoring system.
We have more than 15 years experience to provide the spare parts of elevator .The product scope ranges from contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays , hoistway fixture , intercom system , traveling cables to other spare parts of elevator. as well as home and passenger elevator .
We pursue the sustainable success with customers. When it comes to Elevator components, we are about as materials as they come. That’s because we are in the elevator components many years with very wide supply system. We are more committed to the intelligent development of elevators in the near future and becoming the preferred partner for smart and sustainable city development.
FAFQ
Q1.Can I have a sample order for it ?
A: Yes, we welcome sample order to test and check quality.
Q2: Do you offer guarantee for the products?
A: Yes, all the products are with 1 year warranty.
Q3. Do you have certificates for your products?
A: :Yes,some of products have CE,KC,SAA,TUV GS Certifications.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea which will take about one month to arrive your sea port. If small parts or urgent order,we can deliver
by DHL and FedEx also airline ship is alternative.
Q5.What's your payment item?
A: Our standard payment is T/T in advance, Credit Card , E-Checking.
Q6. Is it OK to print my logo on it ?
A: Yes. Please inform us formally before our production and confirm the design firstly.
